System Diagram [10/2014 - 09/2016]

  1. Power Door Lock Control System

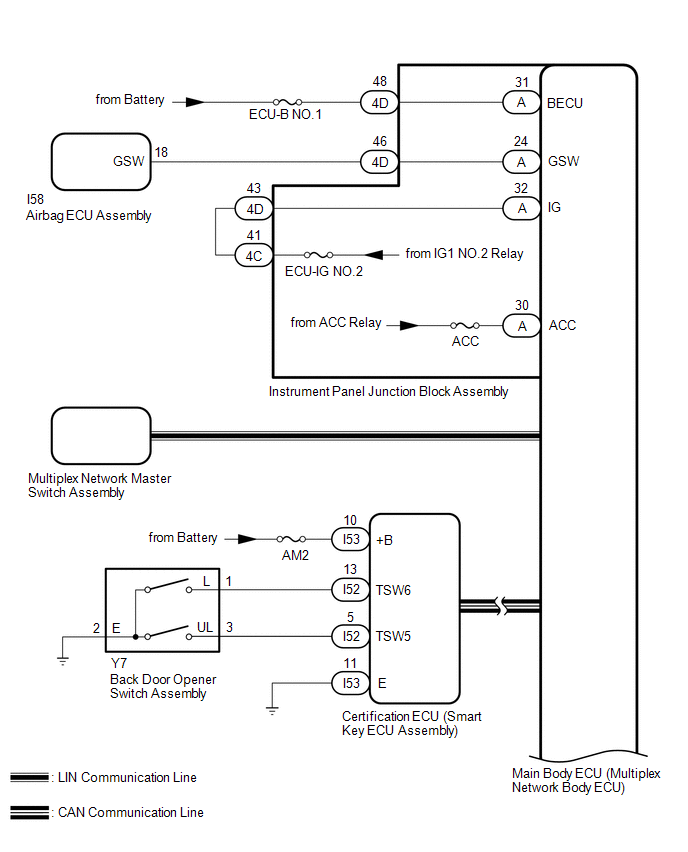

    Fig 1: Power Door Lock Control System Wiring Diagram (1 Of 5)
    GTY513540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

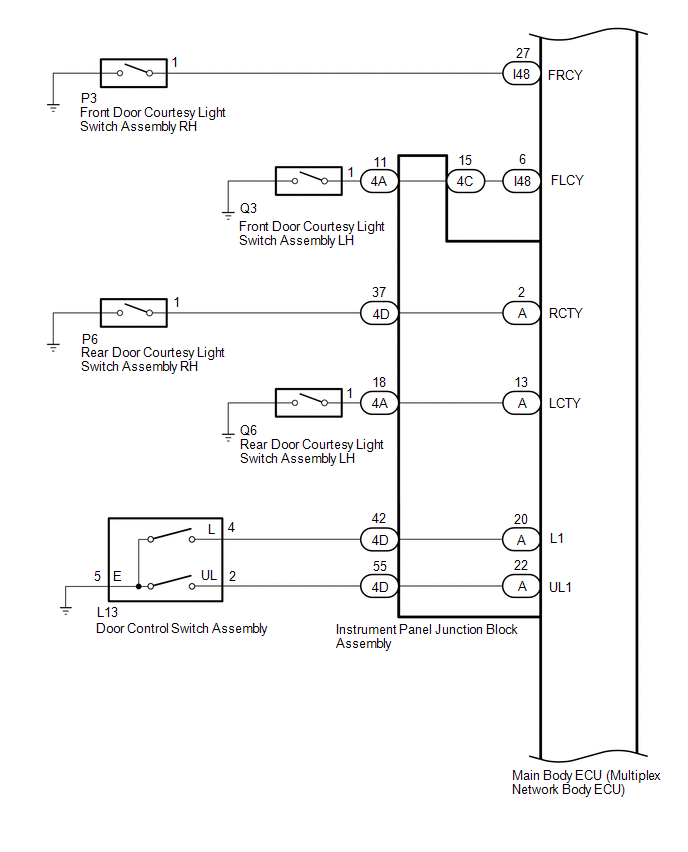

    Fig 2: Power Door Lock Control System Wiring Diagram (2 Of 5)
    GTY497818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Power Door Lock Control System Wiring Diagram (3 Of 5)
    GTY501517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

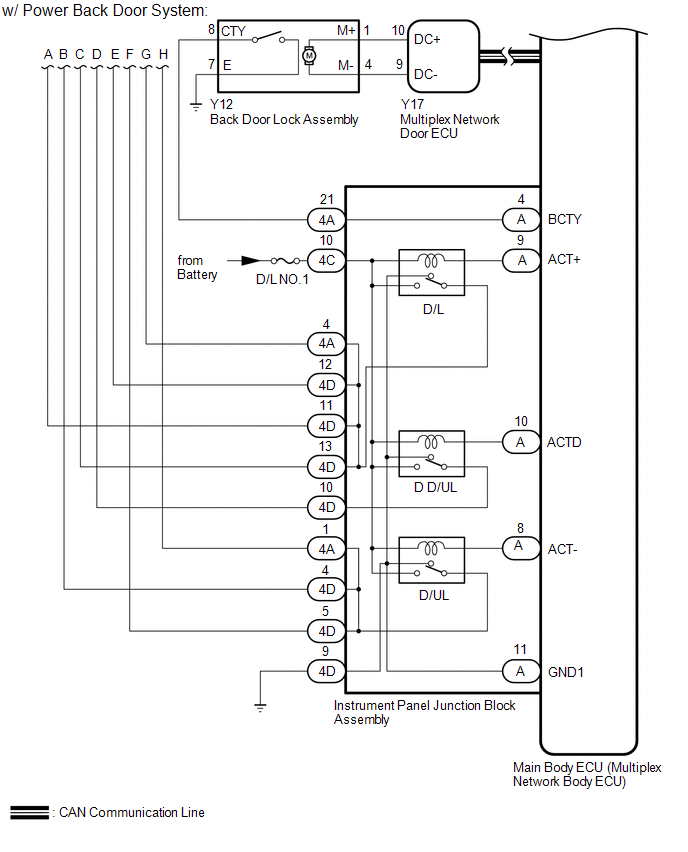

    Fig 4: Power Door Lock Control System Wiring Diagram (4 Of 5)
    GTY520947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Power Door Lock Control System Wiring Diagram (5 Of 5)
    GTY507862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
