DTC P2610-29: ECM/PCM Engine Off Timer Performance Signal Invalid; DTC P2610-93: ECM/PCM Engine Off Timer Performance No Operation [10/2014 - ]: Description

The soak timer operates after the engine switch is turned off. When a certain amount of time has elapsed after turning the engine switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

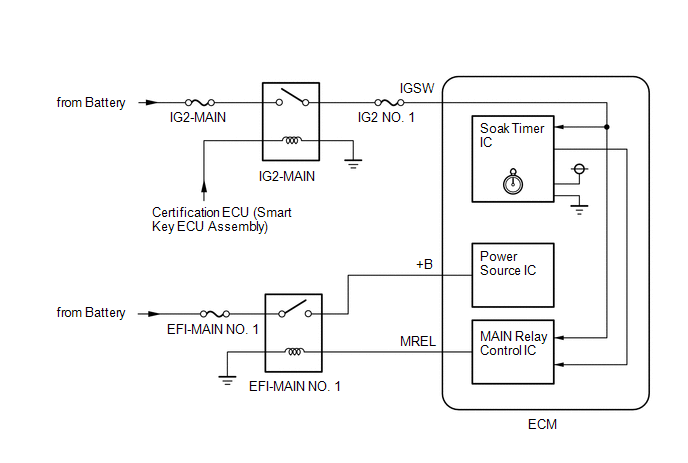

Fig 1: ECM/PCM Engine Off Timer Performance Signal Wiring Diagram
GTY510488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
