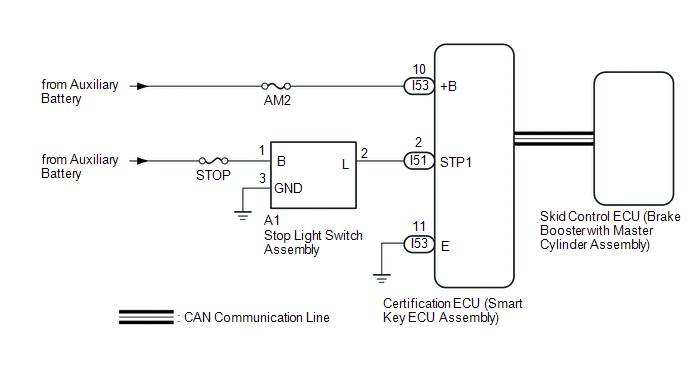

DTC B2284: Brake Signal Malfunction [10/2014 - ]: Wiring Diagram

GTY508767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
