Microphone Circuit [11/2017 - 09/2020]: Wiring Diagram

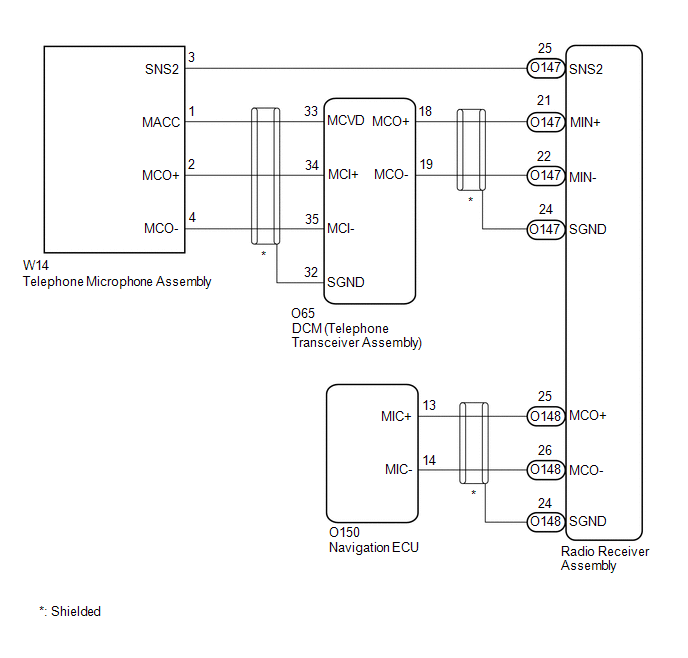

w/ Manual (SOS) Switch:

GTY811842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

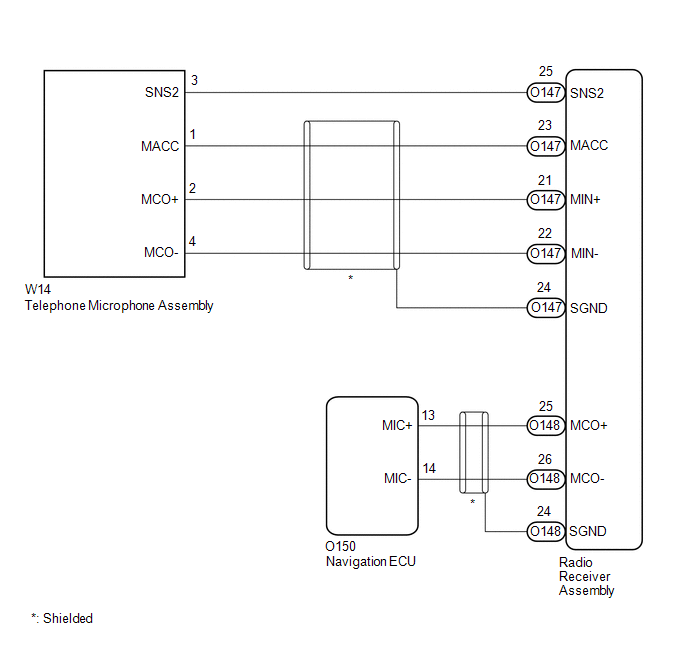

w/o Manual (SOS) Switch:

GTY801143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
