DTC C1434: Steering Angle Sensor Output [11/2017 - 03/2019]: Procedure

  1. CHECK DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [11/2017 - 03/2019]

      Chassis > ABS/VSC/TRAC > Clear DTCs

    2. Turn the engine switch off.
    3. Turn the engine switch on (IG) again and check that no CAN communication system DTCs are output.

      Refer to DIAGNOSIS SYSTEM [11/2017 - 03/2019]

    4. Start the engine.
    5. Drive the vehicle at a speed of 35 km/h (22 mph) and turn the steering wheel to the right and left and then check that no speed sensor or yaw rate and acceleration sensor DTCs are output.

      Refer to DTC CHECK / CLEAR [11/2017 - 03/2019]

      Chassis > ABS/VSC/TRAC > Trouble Codes

      Result

      Result Proceed to
      No CAN communication system, speed sensor, or yaw rate and acceleration sensor DTCs are output. A
      CAN communication system DTCs are output. B
      Speed sensor and/or yaw rate and acceleration sensor DTCs are output. C

      HINT:

      • If a speed sensor, or the yaw rate and acceleration sensor is malfunctioning, DTCs for the steering angle sensor may be stored even though the steering angle sensor is normal.
      • If speed sensor and yaw rate and acceleration sensor DTCs are output simultaneously, repair these malfunctions and then inspect the steering angle sensor.

    Result:

    INSPECT CAN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2017 - 03/2019]

    Result:

    REPAIR CIRCUITS INDICATED BY OUTPUT DTCS. Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2017 - 03/2019]

    Result:

    See step  2

  2. CHECK STEERING ANGLE SENSOR INSTALLATION
    1. Turn the engine switch off.
    2. Check that the steering angle sensor has been installed properly.

      Refer to INSTALLATION [09/2014 - ]

      OK

      The steering angle sensor installation is normal.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    INSTALL STEERING ANGLE SENSOR CORRECTLY. Refer to  INSTALLATION [09/2014 - ]

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BAT TERMINAL)
    1. Remove the steering wheel and the column cover lower.

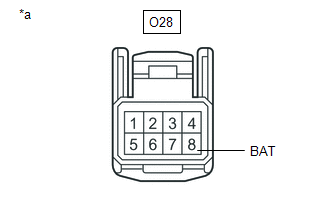

      GTY793731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Steering Angle Sensor)

      Refer to REMOVAL [09/2014 - 03/2019]

    2. Make sure that there is no looseness at the locking part and the connecting part of the connector.
    3. Disconnect the O28 steering angle sensor connector.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      O28-8 (BAT) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BAT CIRCUIT)

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (IG1 TERMINAL)
    1. Turn the engine switch on (IG).

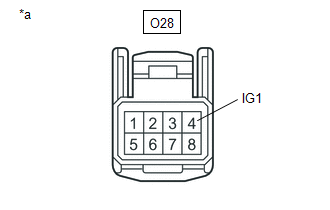

      GTY793734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Steering Angle Sensor)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      O28-4 (IG1) - Body ground Engine switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (ESS TERMINAL)
    1. Turn the engine switch off.

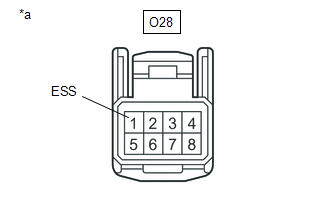

      GTY793733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Steering Angle Sensor)
    2. Measure the resistance according to the value(s) in the table below.
      NOTE:

      Before measuring the resistance of the steering angle sensor, turn the engine switch off and leave the vehicle for 1 minute or more without operating the key or switches, or opening or closing the doors.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O28-1 (ESS) - Body ground 1 minute after engine switch off Below 1 Ω

      Result

      Proceed to
      OK
      NG

      HINT:

      If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing parts.

      Refer to PROBLEM SYMPTOMS TABLE [11/2017 - 03/2019]

    Result:

    OK

    REPLACE STEERING ANGLE SENSOR. Refer to  REMOVAL [09/2014 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (ESS CIRCUIT)
