Engine Oil Replacement Reminder Reset - Procedure 20

NOTE: To reset the message indicating maintenance is required, see appropriate figure.

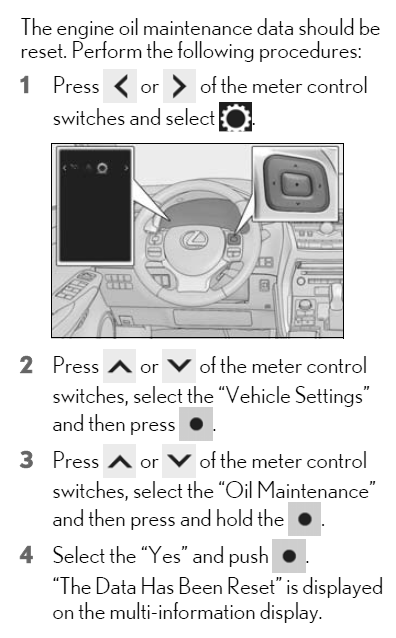

Fig 1: Maintenance Required Reset Procedure (LX Models)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

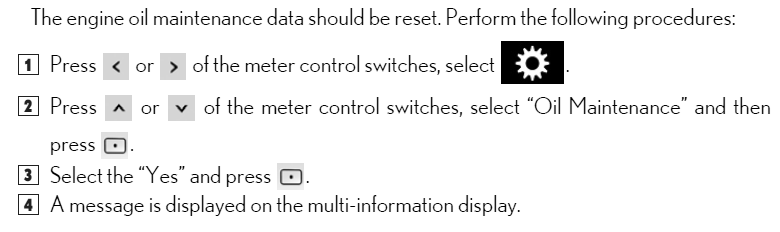

Fig 2: Maintenance Required Reset Procedure (NX Models)

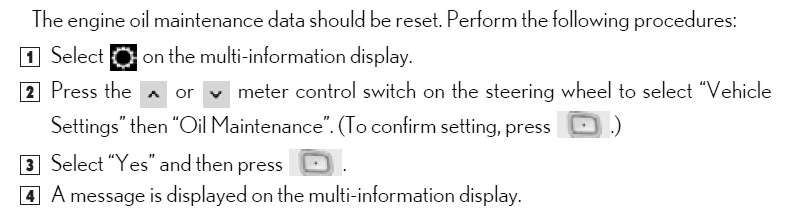

Fig 3: Maintenance Required Reset Procedure (RX Models)
