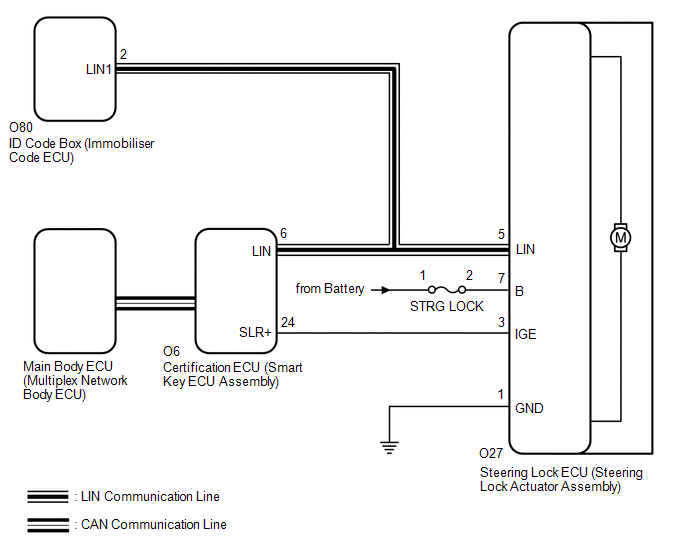

Steering Lock does not Lock [09/2014 - 01/2023]: Wiring Diagram

GTY511059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
