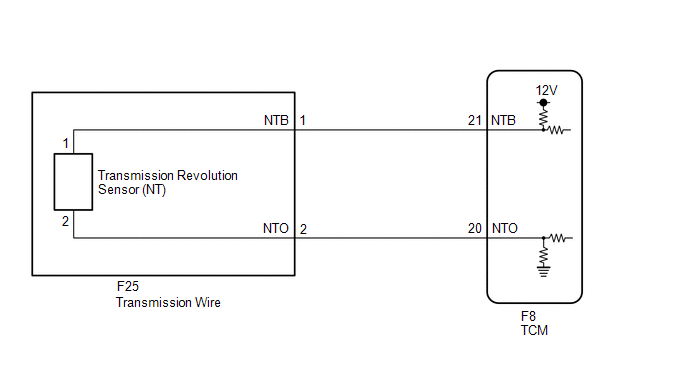

DTC P0717: Input Speed Sensor Circuit No Signal; DTC P07BF: Input/Turbine Speed Sensor "A" Circuit Low; DTC P07C0: Input/Turbine Speed Sensor "A" Circuit High [11/2017 - ]: Wiring Diagram

GTY512859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
