System Description [08/2016 - 12/2017]
- HEADUP DISPLAY SYSTEM DESCRIPTION
- The headup display system receives signals from each ECU via CAN communication and local bus communication and displays driving assist information, such as current vehicle speed, on the windshield glass assembly. The brightness and position of the headup display can be changed on the settings screen of the multi-information display. Depending on certain conditions, the following items can be displayed on the headup display:

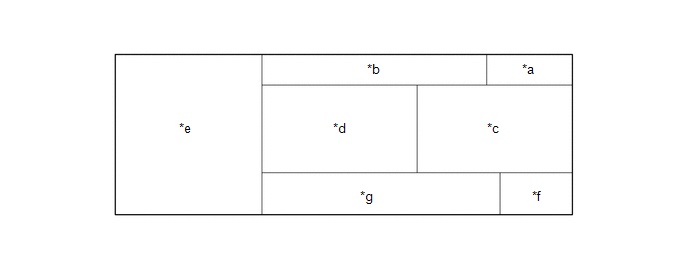

*a Display Area A *b Display Area B *c Display Area C *d Display Area D *e Display Area E *f Display Area F *g Display Area G - - Display Area Display A Master warning light Information indicator light B Pre-collision warning display*1 Unsteady driving alert display*3 Hands off steering wheel alert display*3 Audio system information status display Dynamic radar cruise control system notification message display*1 Speed limit animation (Navigation system)*5 Outside temperature/Icy street warning display C Speed limit (Navigation system)*5 Speedometer D Pre-collision system display*1 Dynamic radar cruise control system display*1 Lane departure alert system display*3 Intelligent clearance sonar*2 Clearance sonar detection display*2 Unsteady driving alert display*3 E Navigation system-linked display*4 Compass F Shift position G Tachometer/Eco driving indicator zone - *1: w/ Pre-collision System
- *2: w/ Intelligent Clearance Sonar System
- *3: w/ LKA/LDA System
- *4: w/ Navigation System
- *5: w/ Speed Limit Display
- The headup display system receives signals from each ECU via CAN communication and local bus communication and displays driving assist information, such as current vehicle speed, on the windshield glass assembly. The brightness and position of the headup display can be changed on the settings screen of the multi-information display. Depending on certain conditions, the following items can be displayed on the headup display:
