System Diagram [08/2019 - ]

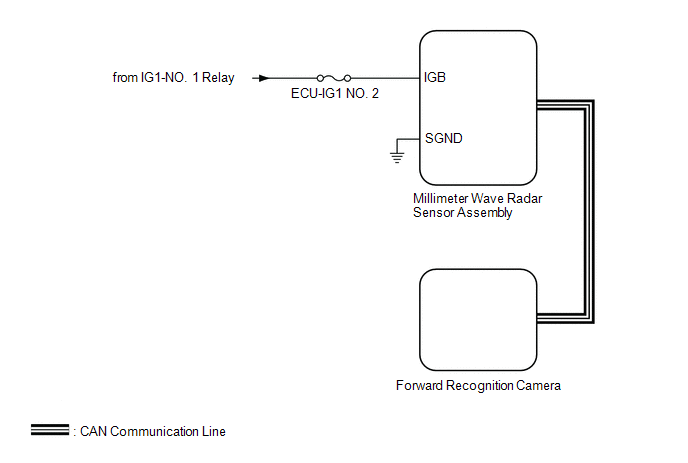

Fig 1: Front Radar Sensor System Wiring Diagram
GTY947602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS

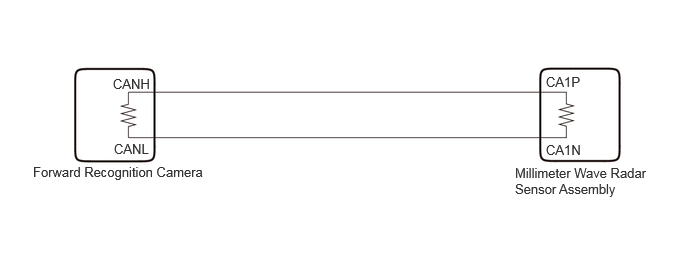

    Fig 2: Local Bus System Diagram
    GTY854331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
