Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 34

  2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

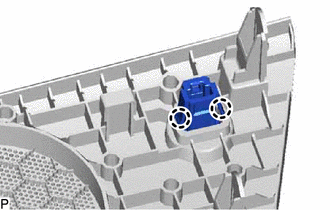

    1. Disengage the 2 claws to remove the automatic light control sensor.
      GTY789763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
