Components [08/2020 - ]

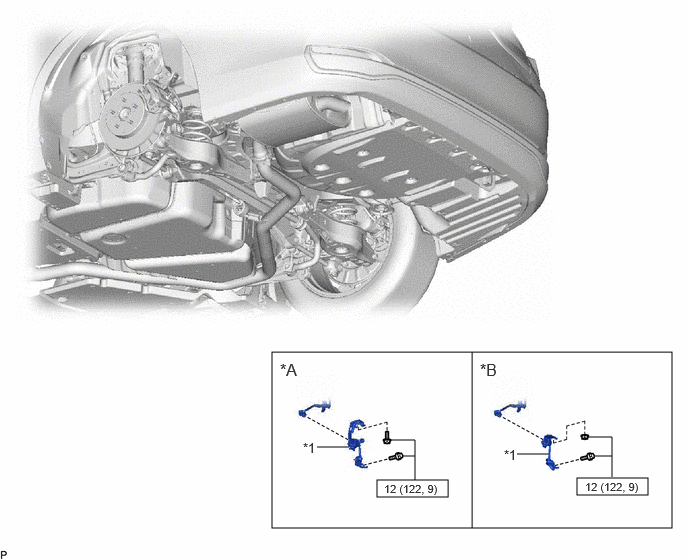

Fig 1: Height Control Sensor Replacement Components With Torque Specifications [08/2020 - ]
GTY1088141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD *B for AWD
*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
