Components [06/2018 - ]

Fig 1: Rear Light Assembly Replacement Components With Torque Specifications [06/2018 - ](1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Power Trunk Lid System	-	-
*1	LUGGAGE COMPARTMENT DOOR COVER	*2	LUGGAGE LOCK CONTROL CABLE PLATE
*3	SWITCH BEZEL	-	-

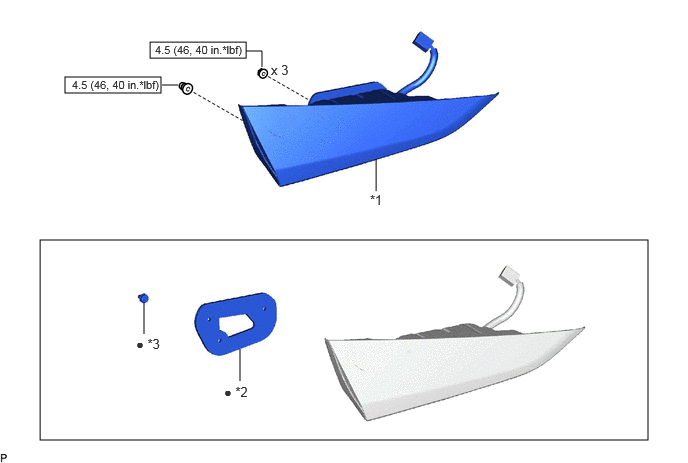

Fig 2: Rear Light Assembly Replacement Components With Torque Specifications [06/2018 - ](2 Of 2)

*1	REAR LIGHT ASSEMBLY	*2	REAR LIGHT GASKET
*3	REAR LIGHT PROTECTOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
