Installation [06/2018 - 10/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ENGINE OIL TEMPERATURE SENSOR

Install a new gasket to the engine oil temperature sensor.

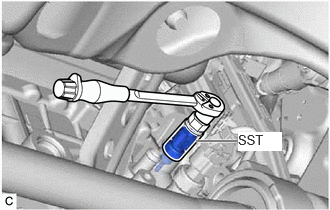

Using SST, install the engine oil temperature sensor to the cylinder block sub-assembly.

SST: 09817-33191

Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)

NOTE:

If the engine oil temperature sensor has been struck or dropped, replace it.

Connect the engine oil temperature sensor connector.

CHECK ENGINE OIL LEVEL
Refer to PROCEDURE - Step 1
INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 6
INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 42
INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 43
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 44
INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 45
