Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL KNOCK CONTROL SENSOR

HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

Refer to INITIALIZATION [06/2018 - 07/2019] , or refer to INITIALIZATION [07/2019 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]

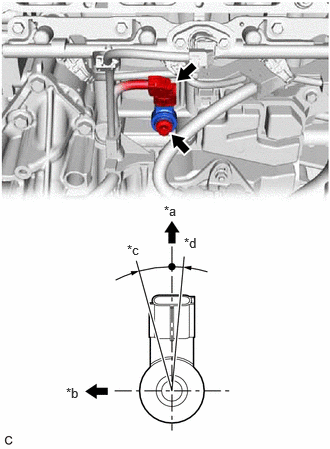

Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Top
*b	Right of Vehicle
*c	15°
*d	5°

NOTE:

If the knock control sensor has been struck or dropped, replace it.
Make sure that the knock control sensor is in the correct position.

Connect the knock control sensor connector.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing the knock control sensor.
  Refer to INITIALIZATION [06/2018 - 07/2019] , or refer to INITIALIZATION [07/2019 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]
