Automatic Transmission System (UB80F) - Service Information (1 Of 2)
>>
Combination Switch
>>
Components [08/2020 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components [08/2020 - ]

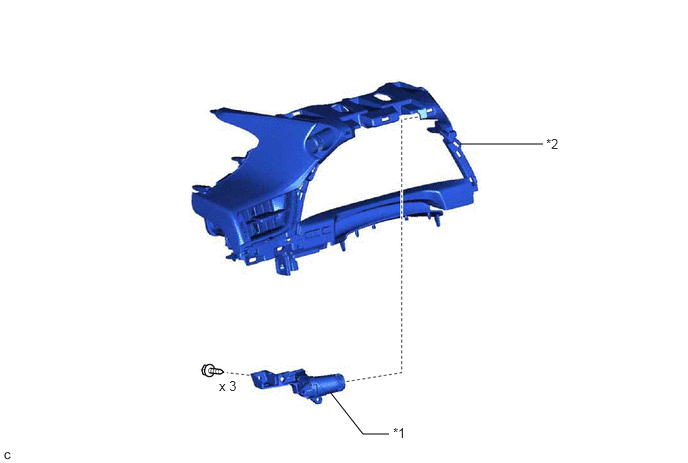

Fig 1: Combination Switch Replacement Components [08/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)
*2
INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
