Components [08/2020 - ]

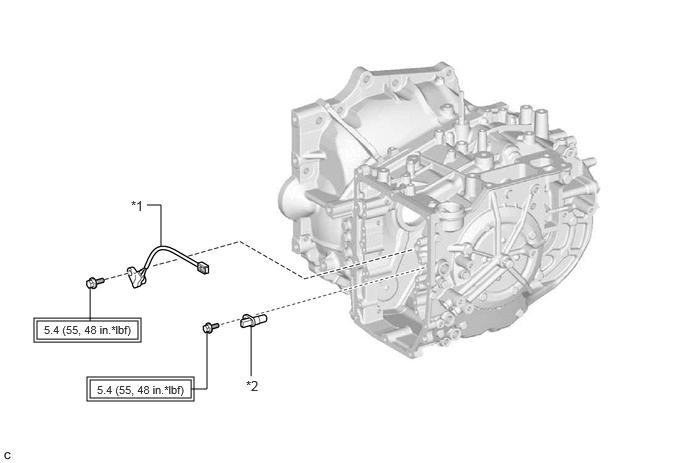

Fig 1: Speed Sensor Replacement Components With Torque Specifications [08/2020 - ]
GTY958040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NC) *2 TRANSMISSION REVOLUTION SENSOR (NT)
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
