Components [08/2020 - ]

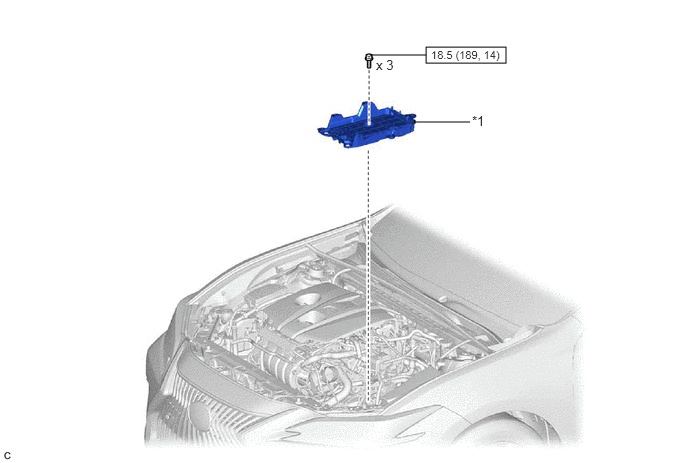

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (1 Of 3)
GTY955806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY CLAMP SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

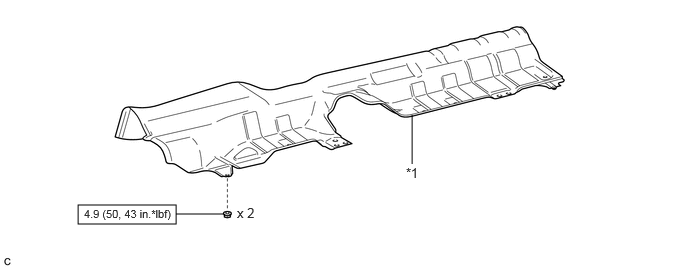

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (2 Of 3)
GTY958042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT LOWER NO. 1 FLOOR HEAT INSULATOR - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

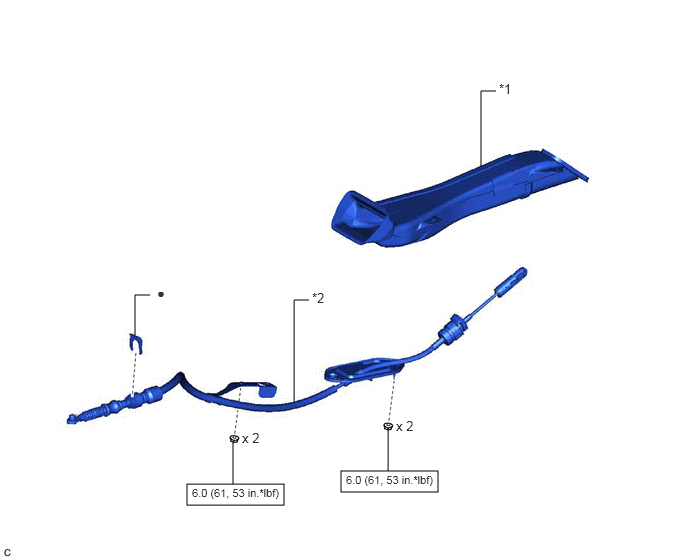

Fig 3: Transmission Control Cable Assembly With Torque Specifications [08/2020 - ] (3 Of 3)
GTY956045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 CONSOLE BOX DUCT *2 TRANSMISSION CONTROL CABLE ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
