Installation [08/2020 - ]: Procedure

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
Connect the transmission control cable assembly to the vehicle body with the 2 nuts.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

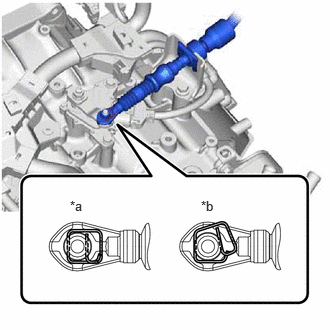

Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Correct
*b	Incorrect

NOTE:

Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

INSTALL NO. 1 CONSOLE BOX DUCT
1. Install the No. 1 console box duct.
INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
Refer to INSTALLATION [08/2020 - 09/2022] , or refer to INSTALLATION [09/2022 - ]
INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
1. Install the front lower No. 1 floor heat insulator to the vehicle body with the 2 nuts.
  Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)
INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to INSTALLATION [08/2020 - ]
INSTALL BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 43 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 44 [08/2021 - ]
INSTALL ECM
Refer to INSTALLATION [08/2020 - ]
INSTALL BATTERY
Refer to INSTALLATION [08/2020 - ]
INSPECT SHIFT LEVER POSITION
See step [08/2020 - 09/2022], or see step [09/2022 - ]
ADJUST SHIFT LEVER POSITION
Refer to ADJUSTMENT [08/2020 - ]
