Components [06/2018 - ]

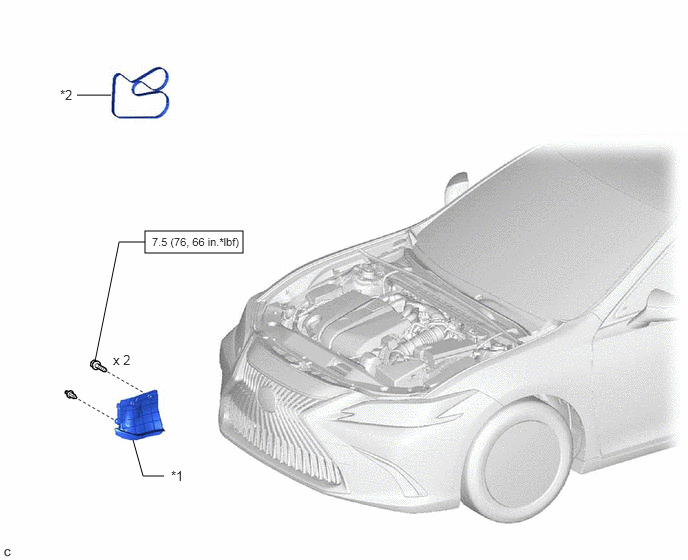

Fig 1: 2GR-FKS Drive Belt Replacement Components With Torque Specifications [06/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER APRON SEAL RH
*2
V-RIBBED BELT
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
