Operation Check [08/2015 - 08/2019]
- INPUT SIGNAL CHECK
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the Techstream to the DLC3.

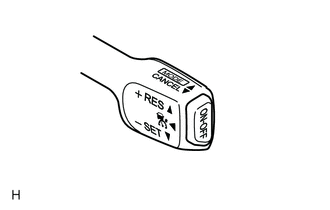

- Check the cruise control switch (ON-OFF, CANCEL, -SET, +RES and MODE) using the Data List function in the Techstream.
- INSPECT MODE SWITCH
- Turn the engine switch on (IG).
- Turn the cruise control switch on.

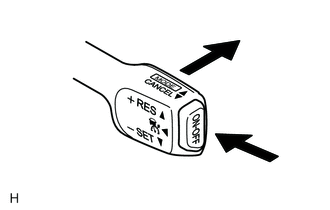

- Push the cruise control switch to MODE for 1 second or more to change to constant speed control mode. Check that the multi-information display changes from displaying "RADAR READY" to a black screen.
- Check that the cruise control indicator light (vehicle-to-vehicle distance control mode) turns off and the cruise control indicator light (constant speed control mode) turns on.TEXT IN ILLUSTRATION

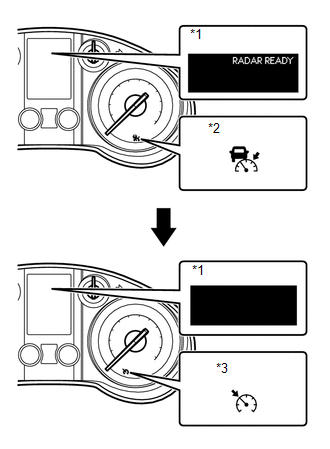

*1 Multi-information Display *2 Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) *3 Cruise Control Indicator Light (Constant Speed Control Mode) NOTE:Do not push any other switches before pushing the cruise control switch to MODE. If another switch is pushed, turn the cruise control switch off and repeat the procedure above.
HINT:
If a malfunction is detected, turn the engine switch off and repeat the procedure above.
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Turn the engine switch on (IG).
- Turn the cruise control switch on. Check that "RADAR READY" is indicated on the multi-information display and that the cruise control indicator light turns on.
- Push the distance control switch of the steering pad switch assembly.
- Check that the indication of the vehicle-to-vehicle distance, which is shown in the multi-information display in the combination meter assembly, changes from long to middle to short in that order.TEXT IN ILLUSTRATION

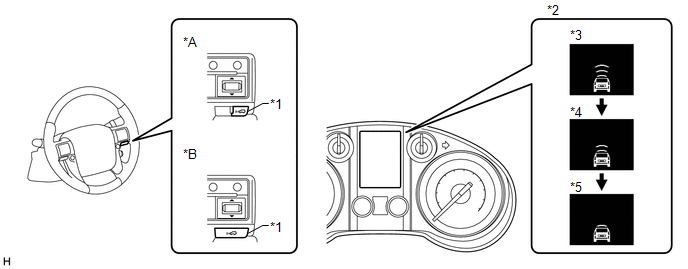

*A w/ Lane departure Alert System *B w/o Lane departure Alert System *1 Steering Pad Switch Assembly (Distance Control Switch) *2 Multi-information Display *3 Long *4 Middle *5 Short - - HINT:
The indication is automatically set to long each time the engine is started.
