Components [08/2015 - 08/2019]

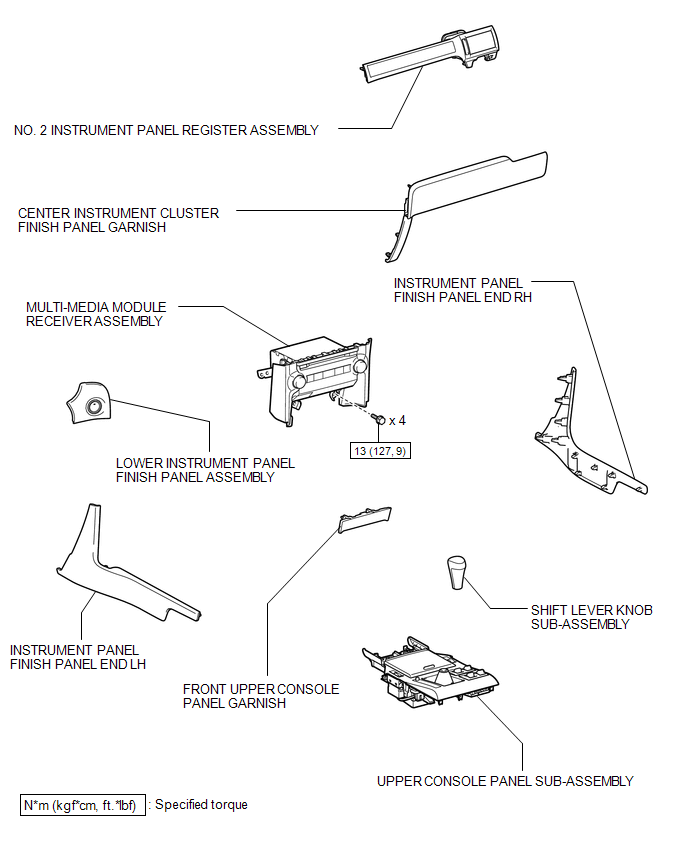

Fig 1: Multi-Display Replacement Components With Torque Specifications (1 Of 2)
GTY458683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

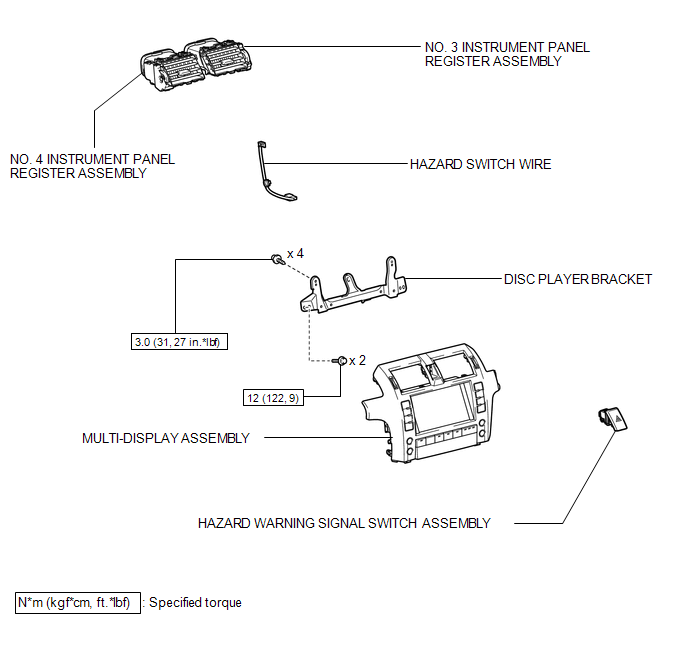

Fig 2: Multi-Display Replacement Components With Torque Specifications (2 Of 2)
GTY467338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
