System Description [08/2015 - 08/2019]

1. This system has a front television camera assembly to display the front view of the vehicle on the multi-display assembly.
2. This system consists of the following components:
   1. Parking assist ECU
   2. Front television camera assembly
   3. Steering pad switch assembly (wide view front and side monitor switch)
   4. Multi-media module receiver assembly
   5. Multi-display assembly
   6. Spiral with sensor cable sub-assembly
   7. Skid control ECU (brake actuator assembly)
   8. Four wheel drive control ECU
   9. ECM
3. This system is equipped with a self-diagnosis system, which is operated from a designated window that appears on the display panel, just as in the navigation system or audio and visual system.

1. The front and side monitor main switch ON signal is sent from the main switch to the parking assist ECU.

   After receiving the front and side monitor main switch ON signal, the parking assist ECU switches the display signal for the multi-display assembly from the multi-media module receiver assembly to the wide view front monitor system.

HINT:

Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

1. Screen display operation

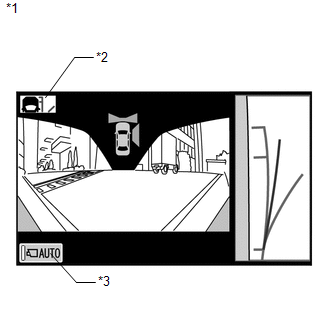

   Fig 1: Identifying Wide View Front and Side Monitor Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Wide View Front and Side Monitor Screen
   *2	Course guideline display change switch
   *3	Automatic display mode set/cancel switch (Illustration shows automatic display mode off)

   1. After the display conditions are met when the wide view front and side monitor systems are normally functioning, if the screen is changed from the manual display mode or automatic display mode screen, the wide view front and side monitor screen (H4 mode) or wide view front monitor screen (L4 mode) is displayed as the initial screen.

      HINT:

      • If the shift lever is not in R and the wide view front and side monitor screen is displayed, the course guideline display change switch and automatic display mode set/cancel switch are displayed and the following operations can be performed.
      • For the course guideline display change switch, refer to the following procedures (Refer to SYSTEM DESCRIPTION [08/2015 - 08/2019] ).
      • Automatic display mode set/cancel switch

        Automatic mode display switch (Indicator in the button)	Display mode
        ON (Illuminated)	Automatic display mode
        OFF (Not illuminated)	Manual display mode

      • The last mode screen is the screen that was displayed last when the screen was changed to the multi-display screen, information setting screen, etc.
2. Display conditions for manual display mode

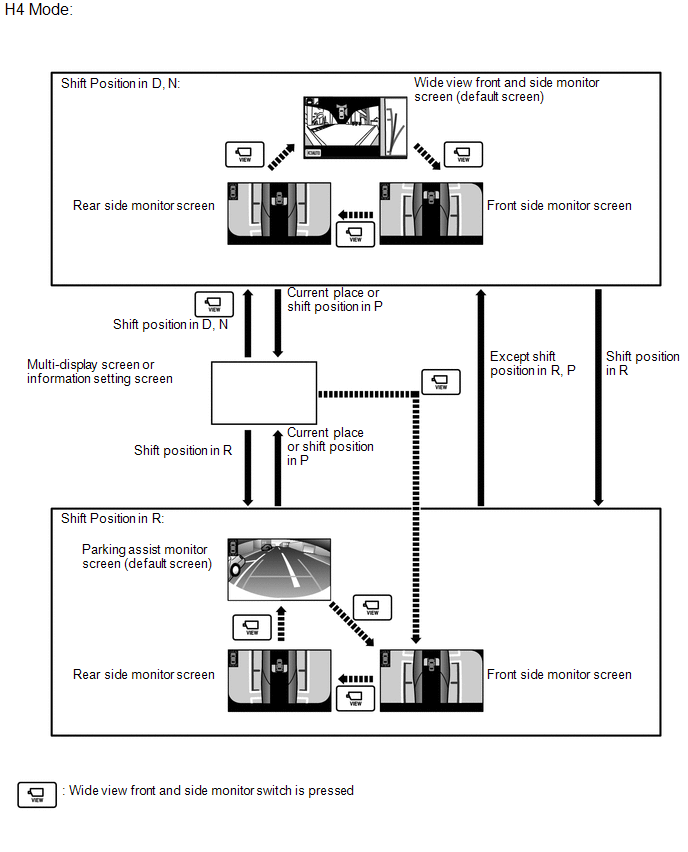

   Fig 2: Identifying H4 Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Identifying L4 Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. H4 mode:

      During manual display mode (shift lever in a position other than R), during engine switch on (IG) or engine startup (no DTCs are output), if the following conditions have been met, pressing the wide view front and side monitor switch will change the display mode as follows

      Automatic Mode Display Switch	Multi-display Screen	Shift Lever	Vehicle Speed	Screen (changes due to wide view front and side monitor switch operation)
      OFF	Multi-display screen or information setting screen	Other than R	12 km/h (7.5 mph) or less	Multi-display screen or information setting screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Wide view front and side monitor screen
      		R position	0 km/h (0 mph)	Multi-display screen or information setting screen → Parking assist monitor screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Parking assist monitor screen

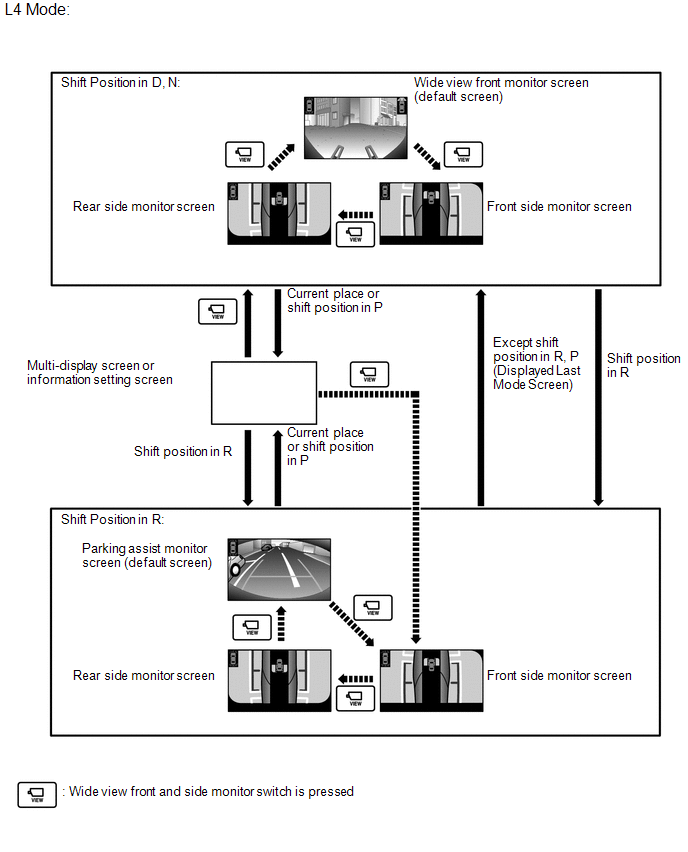

   2. L4 mode:

      During manual display mode (shift lever in a position other than R), during engine switch on (IG) or engine startup (no DTCs are output), if the following conditions have been met, pressing the wide view front and side monitor switch will change the display mode as follows

      Automatic Mode Display Switch	Multi-display Screen	Shift Lever	Vehicle Speed	Screen (changes due to wide view front and side monitor switch operation)
      OFF	Multi-display screen or information setting screen	Other than R	12 km/h (7.5 mph) or less	Multi-display screen or information setting screen → Wide view front monitor screen → Front side monitor screen → Rear side monitor screen → Wide view front monitor screen
      		R position	0 km/h (0 mph)	Multi-display screen or information setting screen → Parking assist monitor screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Parking assist monitor screen

3. Screen display timer function
   1. During manual display mode (when the shift lever is not in R), when the wide view front and side monitor switch is pressed and the following conditions are met, the wide view front and side monitor screen is displayed for a certain period of time even when the vehicle speed is more than 12 km/h (7.5 mph).

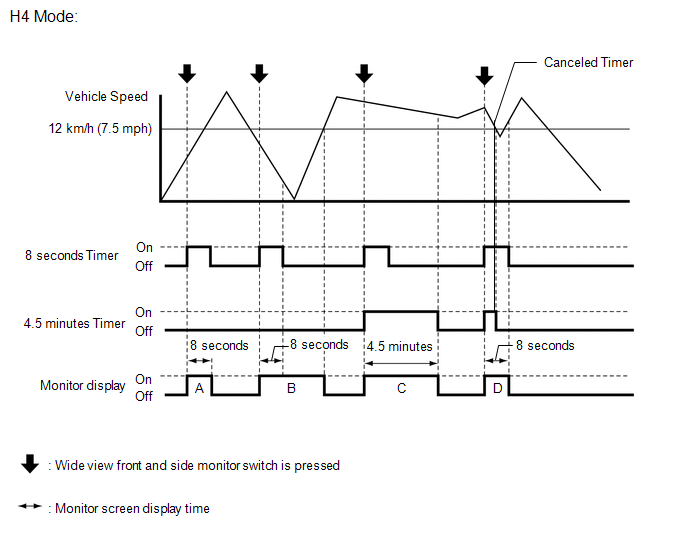

      Fig 4: Identifying H4 Mode Screen Display Timer Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Screen Display Time	Time when Wide View Front and Side Monitor Switch is Pressed	Change in Vehicle Speed	Timer Operation Time	Note
      A B	12 km/h (7.5 mph) or less	12 km/h (7.5 mph) or less	8 seconds	When the wide view front and side monitor switch is pressed with the vehicle speed at 12 km/h (7.5 mph) or less, the camera screen is displayed for 8 seconds from the moment the switch is pressed. After this, if the vehicle speed increases to above 12 km/h (7.5 mph), the camera screen is not displayed.
      C	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the wide view front and side monitor switch is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 4 minutes and 30 seconds the moment the switch is pressed (when the vehicle speed is more than 12 km/h (7.5 mph) after 4 minutes and 30 seconds elapse from the time the switch is pressed).
      D	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph) → 12 km/h (7.5 mph) or less → More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the wide view front and side monitor switch is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the screen display timer operates and the camera screen is displayed. However, after the vehicle speed decreases to 12 km/h (7.5 mph) or less within 4 minutes and 30 seconds (after 8 seconds have elapsed), if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the screen switches to the multi-display or information setting screen. After the vehicle speed decreases to 12 km/h (7.5 mph) or less within 8 seconds, if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the 4 minute 30 seconds timer is canceled and the camera screen is displayed for 8 seconds the moment the wide view front and side monitor switch is pressed.

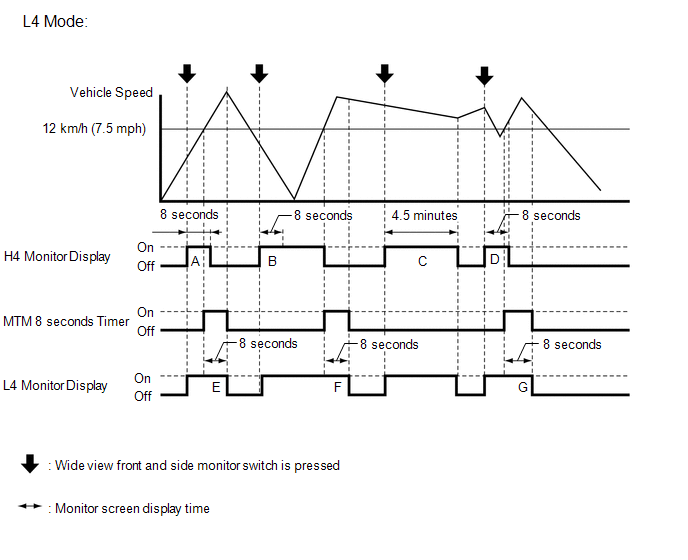

      Fig 5: Identifying L4 Mode Screen Display Timer Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Screen Display Time	Time when Wide View Front and Side Monitor Switch is Pressed	Change in Vehicle Speed	Timer Operation Time	Note
      A B	12 km/h (7.5 mph) or less	12 km/h (7.5 mph) or less	8 seconds	When the wide view front and side monitor switch is pressed with the vehicle speed at 12 km/h (7.5 mph) or less, the camera screen is displayed for 8 seconds from the moment the switch is pressed. After this, if the vehicle speed increases to above 12 km/h (7.5 mph), the camera screen is not displayed.
      C	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the wide view front and side monitor switch is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 4 minutes and 30 seconds the moment the switch is pressed (when the vehicle speed is more than 12 km/h (7.5 mph) after 4 minutes and 30 seconds elapse from the time the switch is pressed).
      D	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph) → 12 km/h (7.5 mph) or less → More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the wide view front and side monitor switch is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the screen display timer operates and the camera screen is displayed. However, after the vehicle speed decreases to 12 km/h (7.5 mph) or less within 4 minutes and 30 seconds (after 8 seconds have elapsed), if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the screen switches to the navigation or information setting screen. After the vehicle speed decreases to 12 km/h (7.5 mph) or less within 8 seconds, if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the 4 minute 30 second timer is canceled and the camera screen is displayed for 8 seconds the moment the wide view front and side monitor switch is pressed.
      E F G	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds	If the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 8 seconds. After that, the camera screen is not displayed. The timer is canceled the moment the vehicle speed decreases to below 12 km/h (7.5 mph) during the 8 second timer.

4. Display conditions for automatic display mode
   1. In automatic display mode, the screen display is automatically displayed according to driving conditions when the following conditions are met and the wide view front and side monitor systems are normally operating.

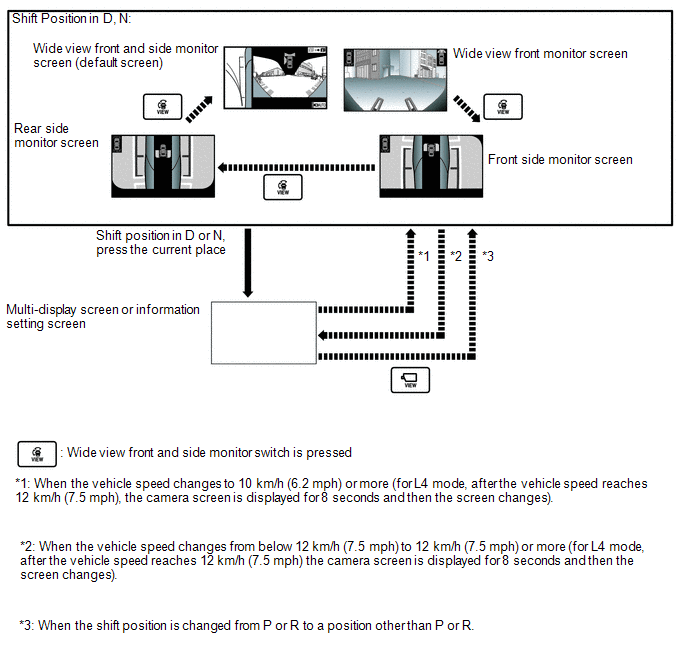

      Fig 6: Identifying Multi-Display Screen In Automatic Display Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Vehicle Condition	Multi-display Assembly Display Screen	Shift Lever	Vehicle Speed	Display Screen
      Stopped → Driving	Multi-display screen or information setting screen	Not in P or R	12 km/h (7.5 mph) or less	Multi-display screen or information setting screen → Wide view front monitor and side monitor screen*
      Driving → Stopped		Not in P or R	10 km/h (6.2 mph) or less	Multi-display screen or information setting screen → Wide view front monitor and side monitor screen*

      1. *: The conditions to change the screen after the display screen changes automatically are the same as in manual display mode.

1. The components of the wide view front monitor system communicate with each other through the AVC-LAN. If a short circuit or open circuit occurs in the AVC-LAN, communication is interrupted and the front monitor system will stop functioning.

1. This wide view front monitor system has a diagnostic function displayed in the multi-display assembly. This function enables the calibration (adjustment and confirmation) of the system (Refer to CALIBRATION [08/2015 - 08/2019] ).
2. The system can check the following items by using the Techstream.

   Item	Proceed to
   DTC	Refer to DTC CHECK / CLEAR [08/2015 - 08/2019]
