Reverse Shift-linked Function of Power Mirrors does not Operate [08/2015 - ]: Procedure

  1. CHECK CAN COMMUNICATION SYSTEM
    1. Check if a CAN communication DTC is output (Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2019] , or refer to DIAGNOSIS SYSTEM [08/2019 - 08/2020] , or refer to DIAGNOSIS SYSTEM [08/2020 - 08/2021] , or refer to DIAGNOSIS SYSTEM [08/2021 - ] ).
      RESULT

      Result Proceed to
      DTC is not output A
      DTC is output B

    Result:

    GO TO CAN COMMUNICATION SYSTEM

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ] )

    Result:

    See step  2

  2. CHECK POWER MIRROR CONTROL FUNCTION (ELECTRICAL REMOTE CONTROL MIRROR FUNCTION)
    1. Check the electrical remote control mirror function (Refer to OPERATION CHECK [08/2015 - ] ).

      OK

      Electrical remote control mirror function is normal.

    Result:

    NG

    GO TO PROBLEM SYMPTOMS TABLE

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2020] , or refer to PROBLEM SYMPTOMS TABLE [08/2020 - ] )

    Result:

    OK

    See step  3

  3. CHECK COMBINATION METER ASSEMBLY
    1. Check if the shift position indicator light in the combination meter assembly operates normally.

      OK

      Shift position indicator light indicates actual shift position correctly.

    Result:

    NG

    GO TO METER / GAUGE SYSTEM

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] , or refer to PROBLEM SYMPTOMS TABLE [08/2019 - ] )

    Result:

    OK

    See step  4

  4. READ VALUE USING TECHSTREAM (MIRROR POSITION SENSOR)
    1. Using the Techstream, read the Data List (Refer to DATA LIST / ACTIVE TEST [08/2015 - ] ).
      MIRROR L / MIRROR R

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Mirror Vertical Sensor Vol Vertical mirror position/MIN: 0, MAX: 4.98 V Within range from 0 to 4.98 V -
      Mirror Horizontal Sensor Vol Horizontal mirror position/MIN: 0, MAX: 4.98 V Within range from 0 to 4.98 V -

      ON

      Output voltage is as shown in table above.

      RESULT

      Result Proceed to
      Driver side mirror does not operate normally A
      Driver side mirror operates normally B
      Passenger side mirror does not operate normally C
      Passenger side mirror operates normally D

    Result:

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY LH

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    See step  6

    Result:

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    See step  5

  5. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY LH
    1. Remove the outer mirror control ECU assembly LH with its connectors still connected (Refer to REMOVAL [08/2015 - ] ).

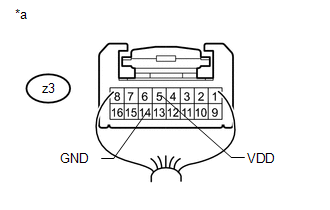

      GTY673374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      z3-5 (VDD) - z3-14 (GND) Engine switch on (IG) 4.7 to 5.3 V
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z3-14 (GND) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Outer Mirror Control ECU Assembly LH)

    Result:

    OK

    REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

    (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] )

    Result:

    NG

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY LH

    (Refer to REMOVAL [08/2015 - ] )

  6. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY RH
    1. Remove the outer mirror control ECU assembly RH with its connectors still connected (Refer to REMOVAL [08/2015 - ] ).

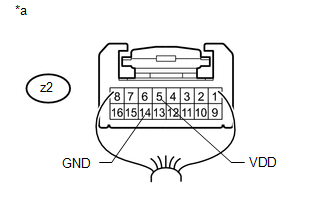

      GTY638159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      z2-5 (VDD) - z2-14 (GND) Engine switch on (IG) 4.7 to 5.3 V
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z2-14 (GND) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Outer Mirror Control ECU Assembly RH)

    Result:

    OK

    REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

    (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] )

    Result:

    NG

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH

    (Refer to REMOVAL [08/2015 - ] )
