Removal [08/2015 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).
- REMOVE DOOR SCUFF PLATE ASSEMBLY RH
Refer to PROCEDURE - Step 7
- REMOVE COWL SIDE TRIM BOARD RH
Refer to PROCEDURE - Step 9
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 6
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE INSTRUMENT LOWER COVER LH
Refer to PROCEDURE - Step 29
- REMOVE NO. 2 INSTRUMENT LOWER PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 26
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 27
- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 28
- REMOVE INSTRUMENT PANEL BOX DOOR COVER
Refer to PROCEDURE - Step 31
- REMOVE INSTRUMENT PANEL BOX ASSEMBLY
Refer to PROCEDURE - Step 32

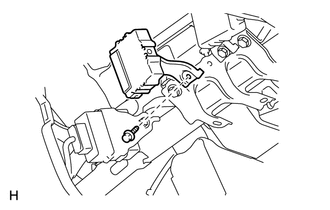

- REMOVE DRIVING SUPPORT SWITCH CONTROL ECU
