Components [08/2015 - 08/2019]

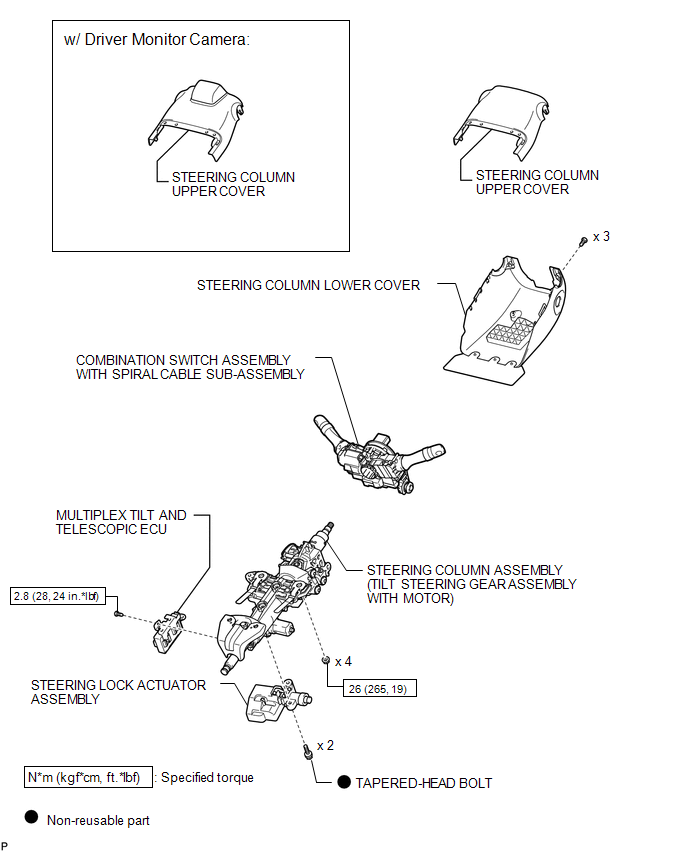

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY670054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

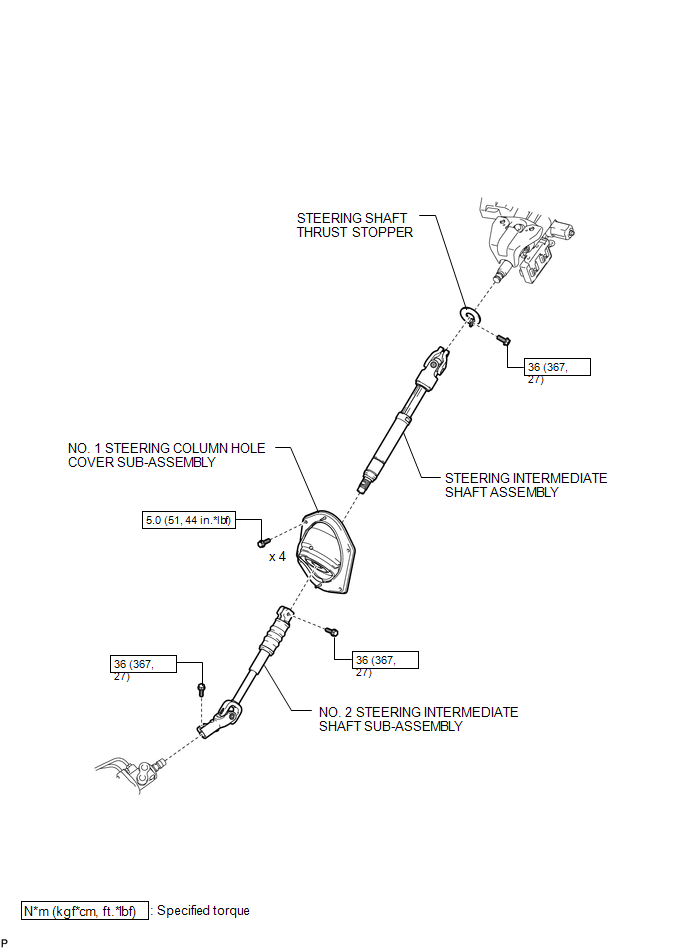

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY656394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
