Components [08/2022 - ]

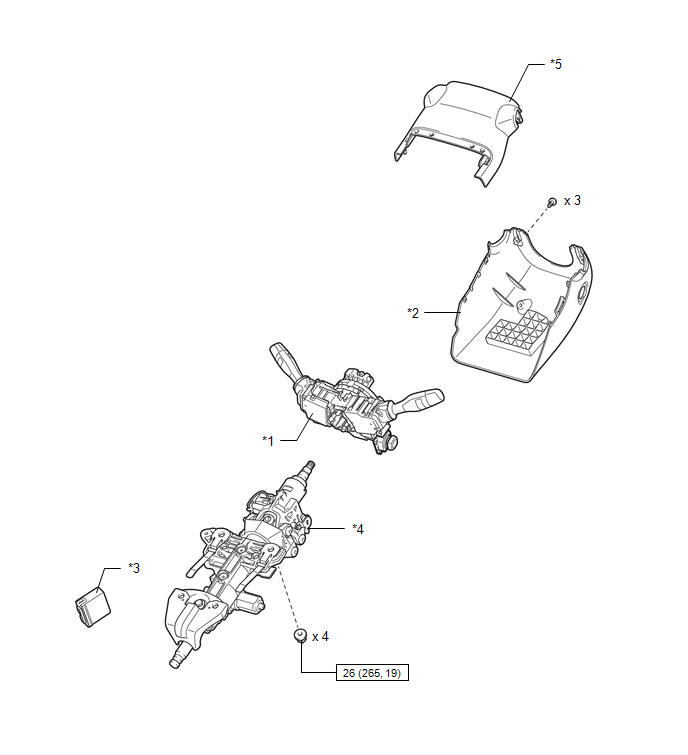

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY	*2	LOWER STEERING COLUMN COVER
*3	MULTIPLEX TILT AND TELESCOPIC ECU	*4	STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)
*5	UPPER STEERING COLUMN COVER	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY	*2	NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
*3	STEERING INTERMEDIATE SHAFT ASSEMBLY	*4	STEERING SHAFT THRUST STOPPER
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-
