Installation [08/2019 - ]: Procedure

CONNECT NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
1. Align the matchmarks on the No. 2 steering intermediate shaft and power steering gear.
2. Install the bolt.
  Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

INSTALL NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

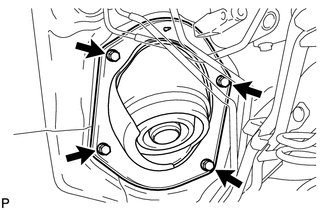

Install the No. 1 steering column hole cover sub-assembly with the 4 bolts.

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

NOTE:

Do not fold back the boot part of the steering hole cover or extend it excessively. If it is extended excessively, return it to its original position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

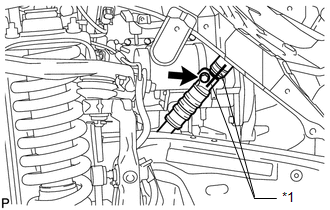

Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft assembly.

HINT:

Install the steering intermediate shaft to the inside of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

Install the bolt.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

INSTALL FRONT NO. 1 FENDER APRON TO FRAME SEAL LH
Refer to PROCEDURE - Step 83 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 83 [08/2020 - ]

INSTALL STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)

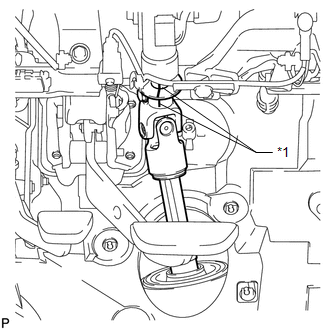

Align the matchmarks on the steering intermediate shaft, steering shaft stopper and steering column.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

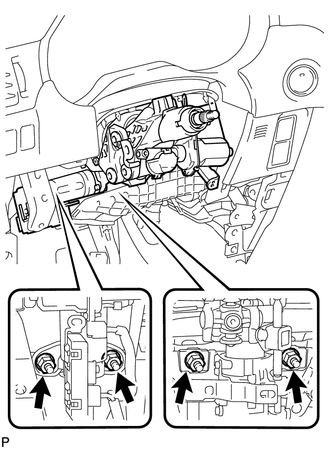

Install the steering column with the 4 nuts.

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the bolts.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
Engage the claws to install the wire harness protector and wire harness.

INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [08/2015 - ]

INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

NOTE:

Do not replace the spiral cable with sensor sub-assembly with the auxiliary battery connected and the power switch on (IG).
Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the power switch on (IG).
Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

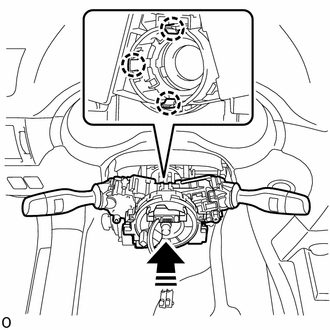

Engage the 3 claws to install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this direction

Connect each connector to the turn signal switch assembly with spiral cable sub-assembly.

INSTALL UPPER STEERING COLUMN COVER

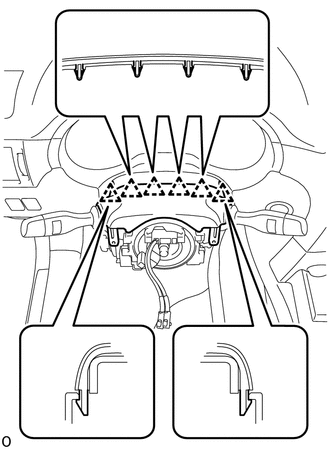

Engage the 6 clips to the upper steering column cover.

Engage the 2 claws to install the upper steering column cover.

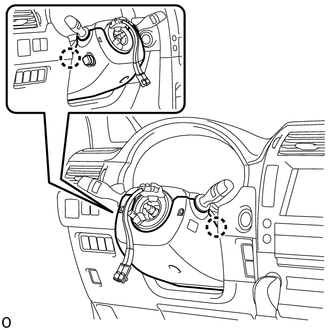

Install in this direction

INSTALL LOWER STEERING COLUMN COVER

Engage the 2 claws to install the lower steering column cover.

NOTE:

Do not damage the tilt and telescopic switch.

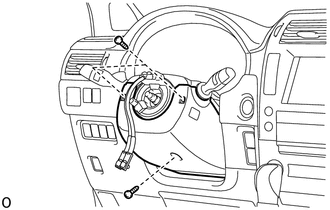

Install the 3 screws.

ADJUST SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL STEERING WHEEL ASSEMBLY
Refer to INSTALLATION [08/2019 - ]
INSTALL FRONT WHEEL LH
CHECK FRONT WHEELS FACING STRAIGHT AHEAD
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
  Refer to CUSTOMIZE PARAMETERS [08/2019 - ]
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
  Refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ]
CHECK SRS WARNING LIGHT
Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2019 - ]
