Reassembly [08/2019 - 08/2022]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

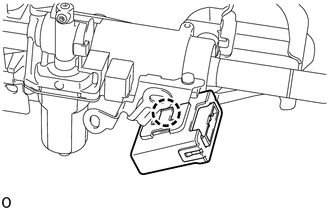

1. Engage the claw to install the multiplex tilt and telescopic ECU.

HINT:

When replacing the steering lock actuator or upper bracket assembly, perform key registration

Refer to REGISTRATION [08/2019 - 08/2021] , or refer to REGISTRATION [08/2021 - 08/2022]

1. Secure the steering column assembly in a vise between aluminum plates and cloths.
   NOTE:

   Do not overtighten the vise.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

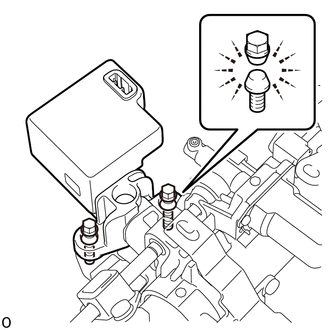

   Temporarily install the steering lock actuator or upper bracket assembly with 2 new steering lock set bolts.

3. Tighten the 2 steering lock set bolts until the bolt head breaks off.
