Removal [08/2015 - 08/2019]: Procedure
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disable the auto tilt away function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - 08/2019]
).NOTE:
Record the current customize parameter setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the auto tilt away function to be disabled when the engine switch is turned off.
- Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
- Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).
- Disable the auto tilt away function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - 08/2019]
).
- REMOVE FRONT WHEEL LH
- REMOVE STEERING WHEEL ASSEMBLY
- Remove the steering wheel assembly (Refer to REMOVAL [08/2015 - 08/2019] ).

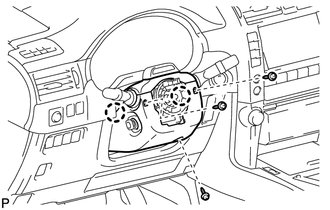

- REMOVE STEERING COLUMN LOWER COVER

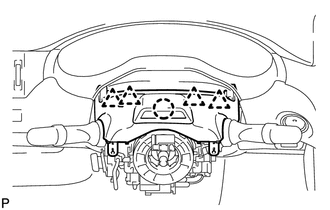

- REMOVE STEERING COLUMN UPPER COVER (w/o Driver Monitor Camera)

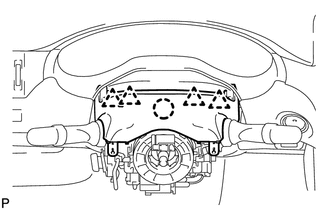

- REMOVE STEERING COLUMN UPPER COVER (w/ Driver Monitor Camera)

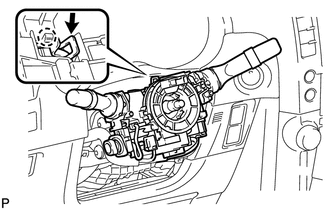

- REMOVE COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
- REMOVE NO. 1 INSTRUMENT LOWER PANEL AIRBAG ASSEMBLY
- Remove the instrument lower panel airbag assembly (Refer to REMOVAL [08/2015 - ] ).
- REMOVE STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)
- REMOVE FRONT NO. 1 FENDER APRON TO FRAME SEAL LH
Refer to PROCEDURE - Step 13

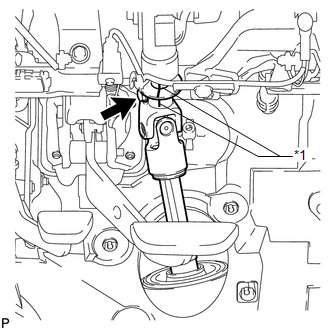

- DISCONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
- REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

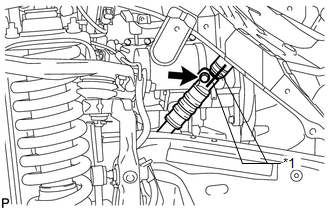

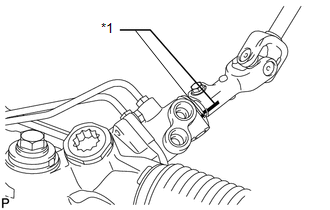

- DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
