System Diagram [04/2013 - ]

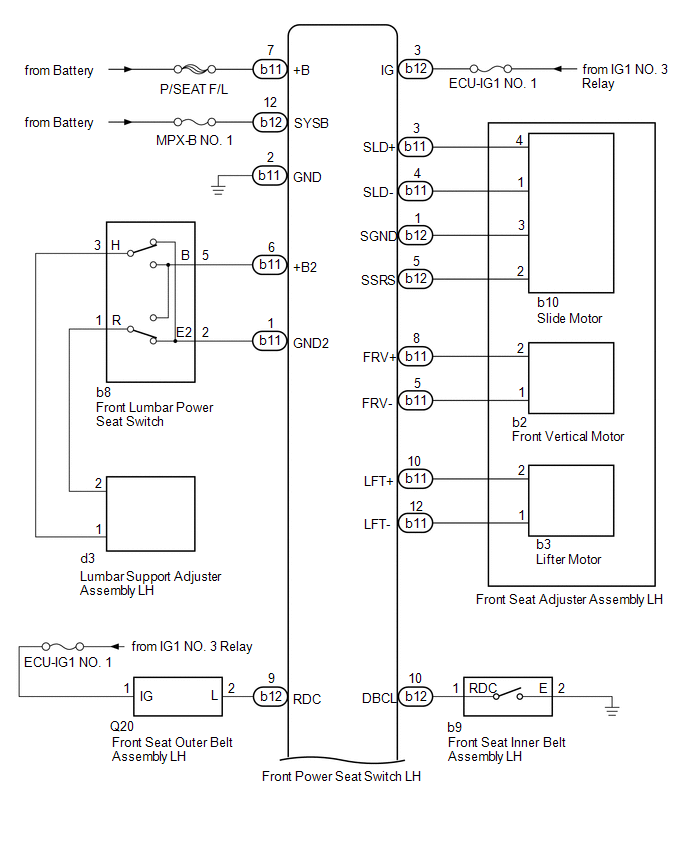

Fig 1: Front Power Seat Control System (W/ Memory) Diagram (1 Of 2)

GTY495965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

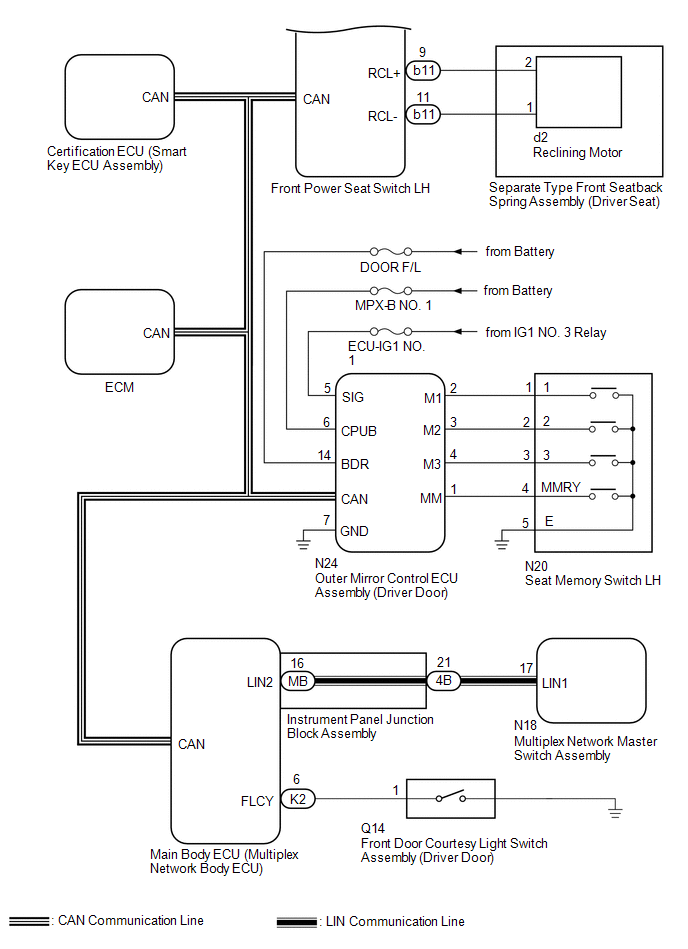

Fig 2: Front Power Seat Control System (W/ Memory) Diagram (2 Of 2)

GTY459821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Main Body ECU (Multiplex Network Body ECU)	Transmission information Park (P) state signal	CAN
Outer Mirror Control ECU Assembly (Driver Door)	Main Body ECU (Multiplex Network Body ECU)	M1 switch signal M2 switch signal M3 switch signal SET switch signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Front Power Seat Switch LH	Park (P) state signal Vehicle speed signal Transmission information Driving position buzzer request Driver seat position request Driver seat position data	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Engine switch signal Memory call replay request Key identification No. 1 to No. 7 acquisition condition	CAN
Front Power Seat Switch LH	Main Body ECU (Multiplex Network Body ECU)	State signal of driver seat State signal of driving position buzzer	CAN
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Door control switch signal	LIN
