DTC B2312: Power Window Switch Malfunction [07/2020 - ]: Procedure
- CHECK FOR DTC
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [07/2020 - ]
Body Electrical > Master Switch > Clear DTCs
Body Electrical > D-Door Motor > Clear DTCs
Body Electrical > P-Door Motor > Clear DTCs
- Check for DTCs.
Refer to DTC CHECK / CLEAR [07/2020 - ]
Body Electrical > Master Switch > Trouble Codes
Body Electrical > D-Door Motor > Trouble Codes
Body Electrical > P-Door Motor > Trouble Codes
OK
DTC B2312 is not output.
Result
Proceed to OK NG
Result:
OK
END (DUE TO SWITCH BEING OPERATED FOR 20 SECONDS OR MORE)
Result:
NG
See step 2
- Clear the DTCs.
- CHECK FOR DTC
- Check the parts which the DTCs have been output from.
Result
Result Proceed to DTC output from Master Switch A DTC output from D-Door Motor B DTC output from P-Door Motor C
Result:
A
REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to REMOVAL [07/2020 - ]
Result:
C
See step 7
Result:
B
See step 3
- Check the parts which the DTCs have been output from.
- READ VALUE USING TECHSTREAM (D-DOOR MOTOR)
- Read the Data List according to the display on the Techstream.
Refer to DATA LIST / ACTIVE TEST [07/2020 - ]
Body Electrical > D-Door Motor > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Up SW Driver door power window manual up switch signal OFF or ON OFF: Driver door power window manual up switch not being operated
ON: Driver door power window manual up switch being operated- D Door P/W Down SW Driver door power window manual down switch signal OFF or ON OFF: Driver door power window manual down switch not being operated
ON: Driver door power window manual down switch being operated- Body Electrical > D-Door Motor > Data List
Tester Display D Door P/W Up SW D Door P/W Down SW OK
On the Techstream screen, ON or OFF is displayed accordingly.
Result
Proceed to OK NG
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
See step 4
- Read the Data List according to the display on the Techstream.
- CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Disconnect the power window regulator motor assembly LH connector.

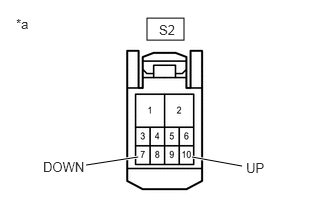

*a Front view of wire harness connector
(to Power Window Regulator Motor Assembly LH) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition S2-10 (UP) - Body ground Engine switch on (IG) 11 to 14 V S2-7 (DOWN) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
See step 5
- Disconnect the power window regulator motor assembly LH connector.
- CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
- Disconnect the U2 multiplex network master switch assembly connector.
- Disconnect the S2 power window regulator motor assembly LH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition U2-20 (UP) - Body ground Always 10 kΩ or higher U2-15 (DOWN) - Body ground Always 10 kΩ or higher S2-10 (UP) - Body ground Always 10 kΩ or higher S2-7 (DOWN) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to REMOVAL [07/2020 - ]
Result:
NG
See step 6
- INSPECT FRONT DOOR WIRE LH
- Turn the engine switch off.

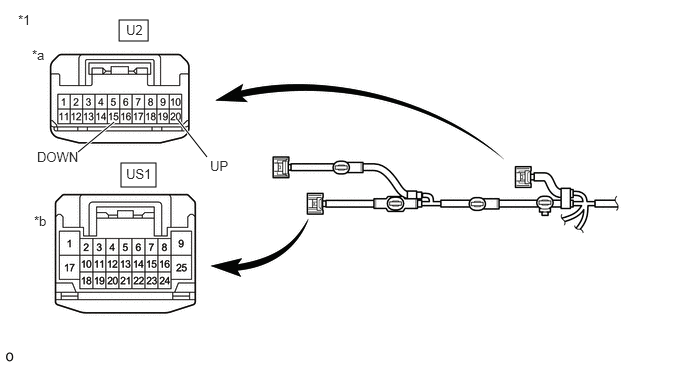

*1 Front Door Wire LH - - *a Front view of wire harness connector
(to Multiplex Network Master Switch Assembly Side Connector)*b Front view of wire harness connector
(to Vehicle Side Connector) - Disconnect the U2 front door wire LH connector.
- Disconnect the US1 front door wire LH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition U2-20 (UP) - Body ground Always 10 kΩ or higher U2-15 (DOWN) - Body ground Always 10 kΩ or higher US1-5 - Body ground Always 10 kΩ or higher US1-13 - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE FRONT DOOR WIRE LH. Refer to DISASSEMBLY [07/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
- Turn the engine switch off.
- READ VALUE USING TECHSTREAM (P-DOOR MOTOR)
- Read the Data List according to the display on the Techstream.
Refer to DATA LIST / ACTIVE TEST [07/2020 - ]
Body Electrical > P-Door Motor > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Auto SW Front passenger door power window auto switch signal OFF or ON OFF: Front passenger door power window auto switch not being operated
ON: Front passenger door power window auto switch being operated- P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON OFF: Front passenger door power window manual up switch not being operated
ON: Front passenger door power window manual up switch being operated- P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON OFF: Front passenger door power window manual down switch not being operated
ON: Front passenger door power window manual down switch being operated- Body Electrical > P-Door Motor > Data List
Tester Display P Door P/W Auto SW P Door P/W Up SW P Door P/W Down SW OK
On the Techstream screen, ON or OFF is displayed accordingly.
Result
Proceed to OK NG
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
See step 8
- Read the Data List according to the display on the Techstream.
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
- Remove the power window regulator switch assembly.
Refer to REMOVAL [07/2020 - ]
- Inspect the power window regulator switch assembly.
Refer to INSPECTION [07/2020 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY. Refer to REMOVAL [07/2020 - ]
Result:
OK
See step 9
- Remove the power window regulator switch assembly.
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
- Disconnect the T1 power window regulator switch assembly connector.
- Disconnect the R2 power window regulator motor assembly RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition T1-2 (UP) - Body ground Always 10 kΩ or higher T1-4 (AUTO) - Body ground Always 10 kΩ or higher T1-10 (DOWN) - Body ground Always 10 kΩ or higher R2-10 (UP) - Body ground Always 10 kΩ or higher R2-4 (AUTO) - Body ground Always 10 kΩ or higher R2-7 (DOWN) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
See step 10
- INSPECT FRONT DOOR WIRE RH
- Turn the engine switch off.
*1 Front Door Wire RH - - *a Front view of wire harness connector
(to Vehicle Side Connector)*b Front view of wire harness connector
(to Power Window Regulator Switch Assembly Side Connector) - Disconnect the T1 front door wire RH connector.
- Disconnect the TR1 front door wire RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition T1-2 (UP) - Body ground Always 10 kΩ or higher T1-10 (DOWN) - Body ground Always 10 kΩ or higher T1-4 (AUTO) - Body ground Always 10 kΩ or higher TR1-5 - Body ground Always 10 kΩ or higher TR1-13 - Body ground Always 10 kΩ or higher TR1-6 - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE FRONT DOOR WIRE RH. Refer to DISASSEMBLY [07/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
- Turn the engine switch off.
