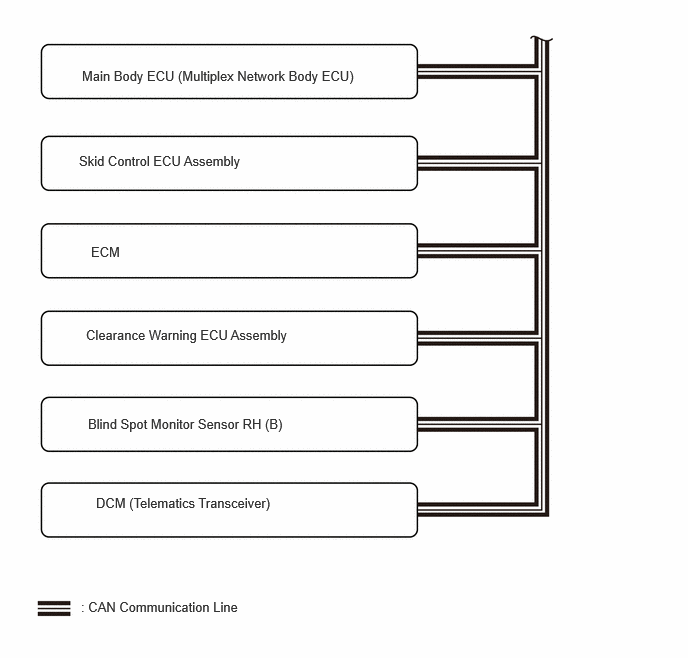

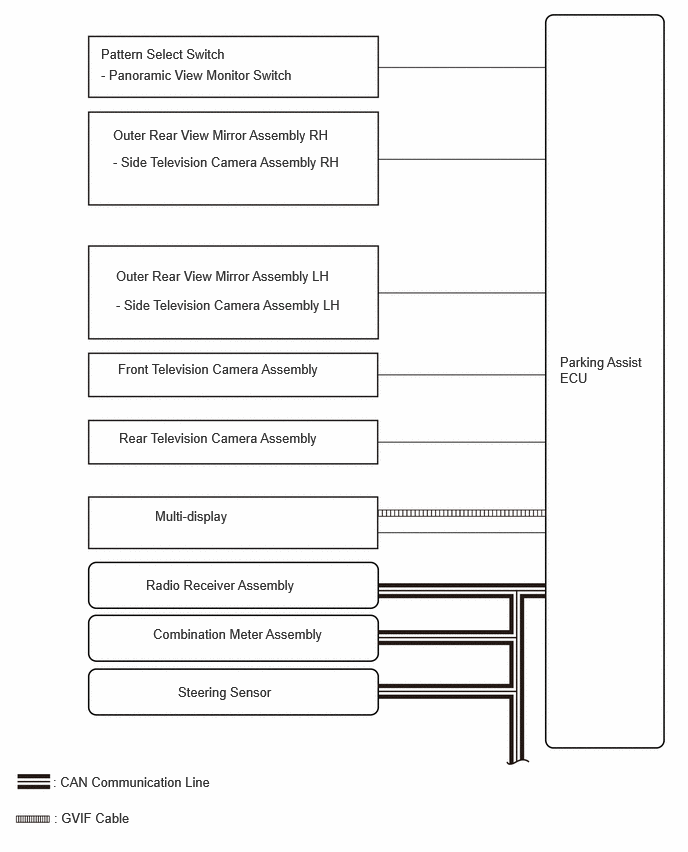

System Diagram [05/2023 - ]
WARNING:
This page is about a different car, the 2024 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
