System Diagram [07/2020 - ]

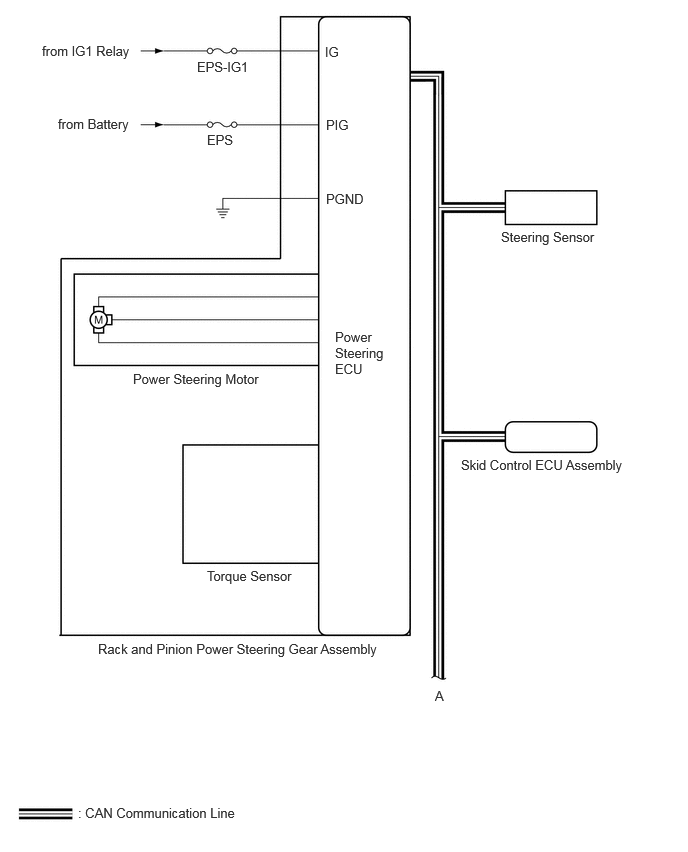

Fig 1: Power Steering System Diagram (1 Of 2)
GTY958407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Steering System Diagram (2 Of 2)
GTY955187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
