Components [07/2020 - ]

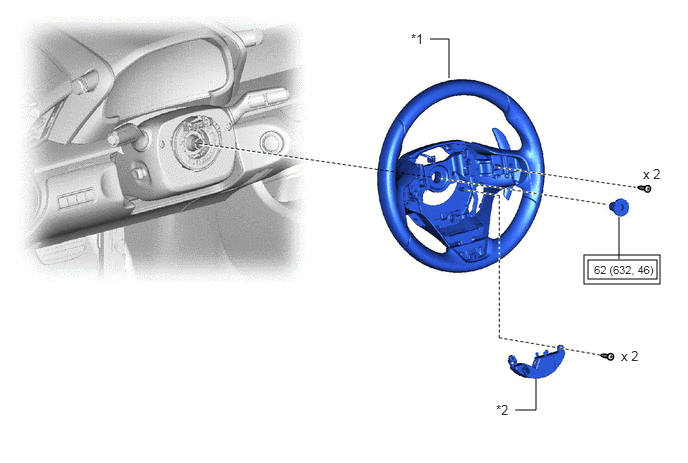

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications
GTY838426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING WHEEL ASSEMBLY *2 STEERING WHEEL HEATER CONTROL ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) - -
