Installation [07/2020 - ]: Procedure

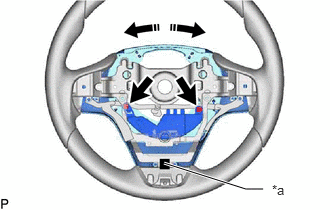

1. Using part A as a fulcrum, move the lower steering wheel boss cover to a position where the steering wheel heater control assembly and screw can be removed.
   NOTE:

   • Work carefully so that the heater thermistor does not come off the lower steering wheel boss cover.
   • If the heater thermistor comes off the lower steering wheel boss cover, replace the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Using part A

2. Install the steering wheel heater control assembly to the lower steering wheel boss cover with the 2 screws.
   NOTE:

   • Work carefully so that the heater thermistor does not come off the lower steering wheel boss cover.
   • If the heater thermistor comes off the lower steering wheel boss cover, replace the steering wheel assembly.

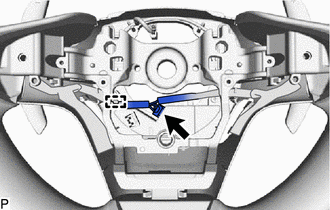

3. Engage the guide to install the wire harness to the lower steering wheel boss cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Connect the connector.

1. Attach the 2 claws.
2. Install the lower steering wheel boss cover with the 2 screws.

Refer to INSTALLATION [07/2020 - ]
