Components [05/2023 - ]

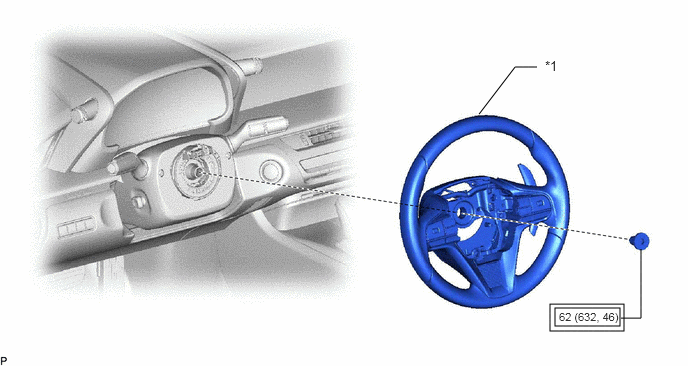

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications [05/2023 - ] (1 Of 5)
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

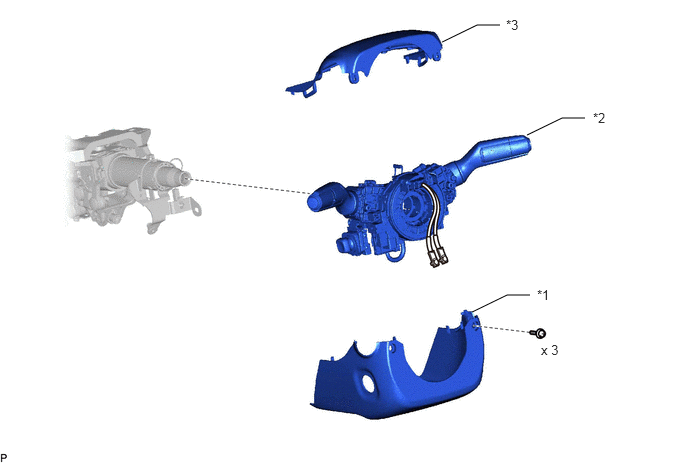

| *1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | *2 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | - | - |

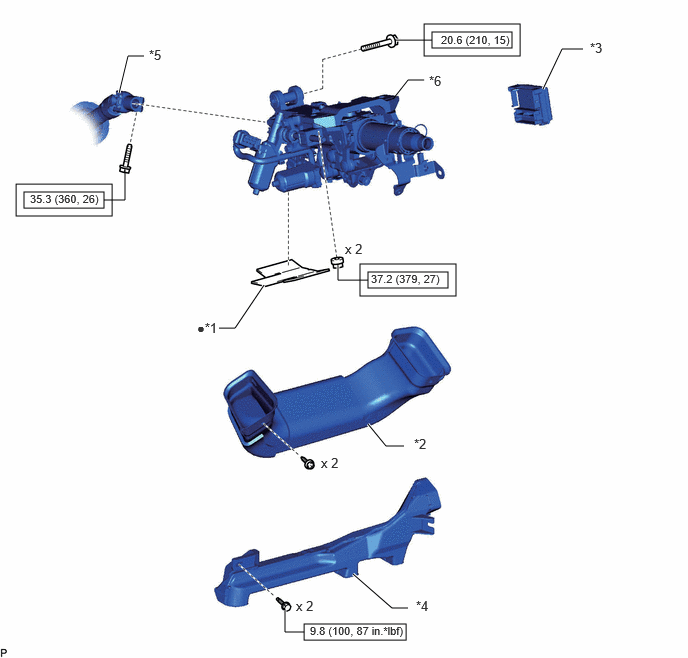

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications [05/2023 - ] (3 Of 5)
| *1 | CUSHION | *2 | HEATER TO CENTER REGISTER SUB DUCT |
| *3 | MULTIPLEX TILT AND TELESCOPIC ECU | *4 | NO. 1 AIR DUCT |
| *5 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *6 | STEERING COLUMN ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

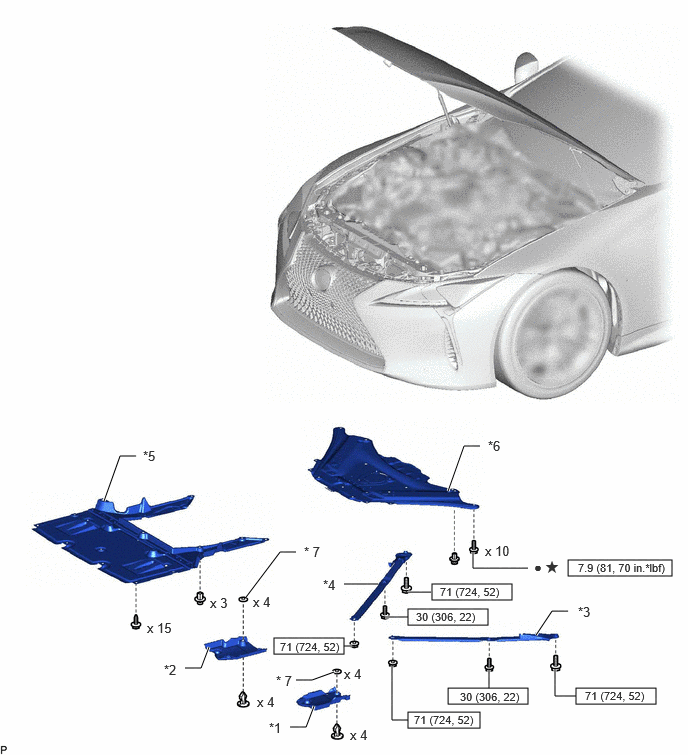

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications [05/2023 - ] (4 Of 5)
| *1 | FRONT FENDER SEAL LH | *2 | FRONT FENDER SEAL RH |
| *3 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH | *4 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH |
| *5 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *6 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *7 | PLATE WASHER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |

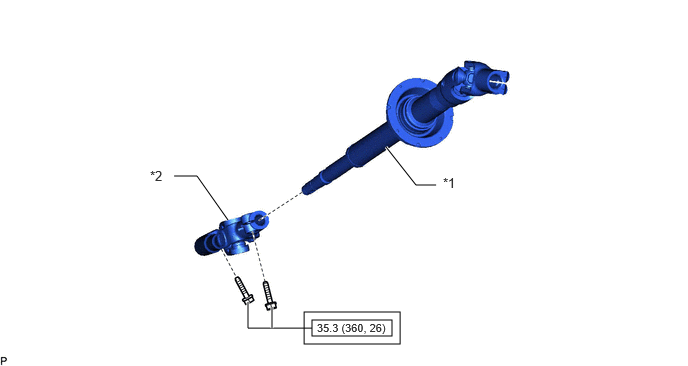

Fig 5: Steering Column Assembly Replacement Components With Torque Specifications [05/2023 - ] (5 Of 5)
| *1 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *2 | STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
