Inspection [07/2020 - ]: Procedure
- INSPECT TILT MOTOR
- Apply 12 V battery voltage to the tilt motor connector. Then check the steering wheel tilt operation.

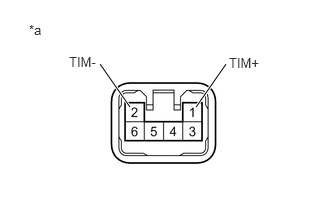

*a Component without harness connected
(Tilt Motor)OK
Measurement Condition Specified Condition - 12 V battery positive (+) lead → Terminal 2 (TIM-)
- 12 V battery negative (-) lead → Terminal 1 (TIM+)
The steering wheel tilts down. - 12 V battery positive (+) lead → Terminal 1 (TIM+)
- 12 V battery negative (-) lead → Terminal 2 (TIM-)
The steering wheel tilts up.
- Apply 12 V battery voltage to the tilt motor connector. Then check the steering wheel tilt operation.
- INSPECT TELESCOPIC MOTOR

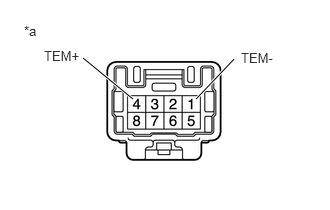

*a Component without harness connected
(Telescopic Motor)- Apply 12 V battery voltage to the telescopic motor connector. Then check the steering column telescopic operation.
OK
Measurement Condition Specified Condition - 12 V battery positive (+) lead → Terminal 4 (TEM+)
- 12 V battery negative (-) lead → Terminal 1 (TEM-)
The steering column contracts. - 12 V battery positive (+) lead → Terminal 4 (TEM-)
- 12 V battery negative (-) lead → Terminal 2 (TEM+)
The steering column extends.
- Apply 12 V battery voltage to the telescopic motor connector. Then check the steering column telescopic operation.
