Reassembly [05/2023 - ]: Procedure
- INSTALL CUSHION

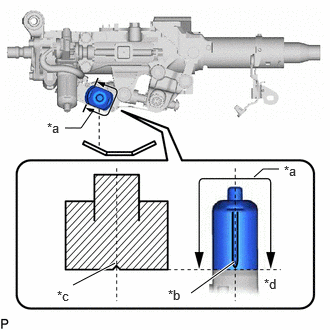

- Align the center of the cutout on a new cushion to the center of the groove on the tilt motor and attach it in the position shown in the illustration.NOTE:
- Apply the cushion within the application area so that the tilt motor cannot be seen.
- Avoid creating wrinkles as much as possible when attaching the cushion.
*a Application Area *b Tilt Motor Groove Center *c Center of Cushion Cutout *d Incorrect Application
- Align the center of the cutout on a new cushion to the center of the groove on the tilt motor and attach it in the position shown in the illustration.
- INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
- Engage the 2 claws and guide to install the multiplex tilt and telescopic ECU.
