Reassembly [07/2020 - 05/2023]: Procedure

INSTALL CUSHION

Align the center of the cutout on a new cushion to the center of the groove on the tilt motor and attach it in the position shown in the illustration.

NOTE:

Apply the cushion within the application area so that the tilt motor cannot be seen.
Avoid creating wrinkles as much as possible when attaching the cushion.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Application Area
*b	Tilt Motor Groove Center
*c	Center of Cushion Cutout
*d	Incorrect Application

INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
1. Engage the 2 claws and guide to install the multiplex tilt and telescopic ECU.

INSTALL STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY

NOTE:

If the steering lock actuator or upper bracket assembly is replaced, refer to Service Bulletin.

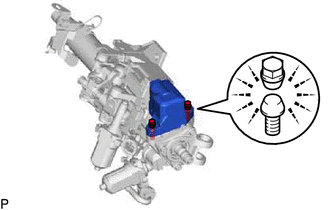

Temporarily install the steering lock actuator or upper bracket assembly with 2 new steering lock set bolts.

NOTE:

Do not overtighten the vise.
Do not clamp the steering lock actuator or upper bracket assembly in the vise.

Tighten the 2 steering lock set bolts until the bolt head breaks off.
