Removal [07/2020 - 05/2023]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [07/2020 - ]

    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [07/2020 - 05/2023]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to INITIALIZATION [07/2020 - 05/2023]

  2. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023]

  3. REMOVE STEERING PAD SWITCH ASSEMBLY

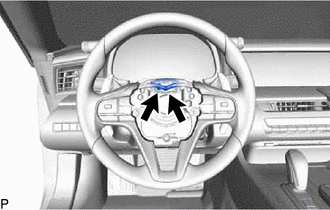

    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
      GTY784394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the transmission shift switch.

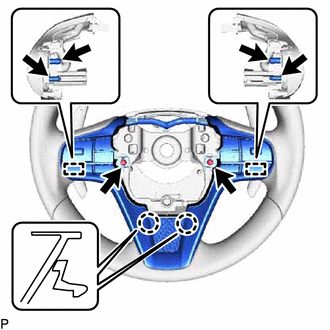

    3. Remove the 2 screws.
      GTY814399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and 4 pins to remove the steering pad switch assembly from the steering wheel sub-assembly.
