Components [07/2020 - ]

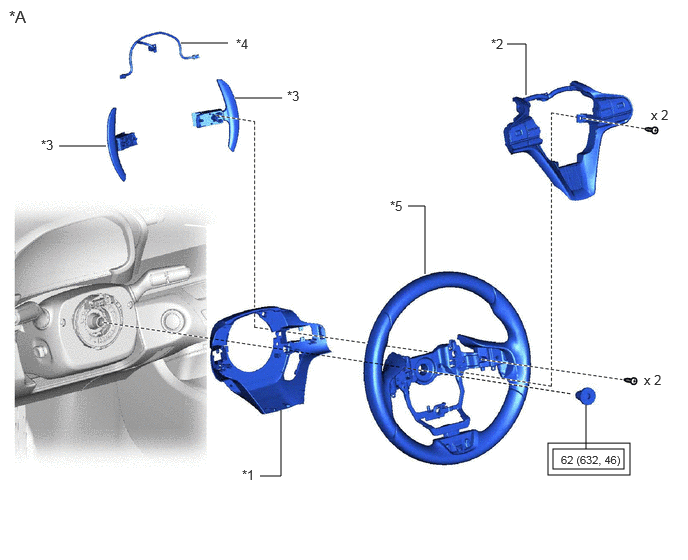

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Steering Heater	-	-
*1	LOWER STEERING WHEEL BOSS COVER	*2	STEERING PAD SWITCH ASSEMBLY
*3	TRANSMISSION SHIFT SWITCH ASSEMBLY	*4	NO. 2 SWITCH WIRE
*5	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

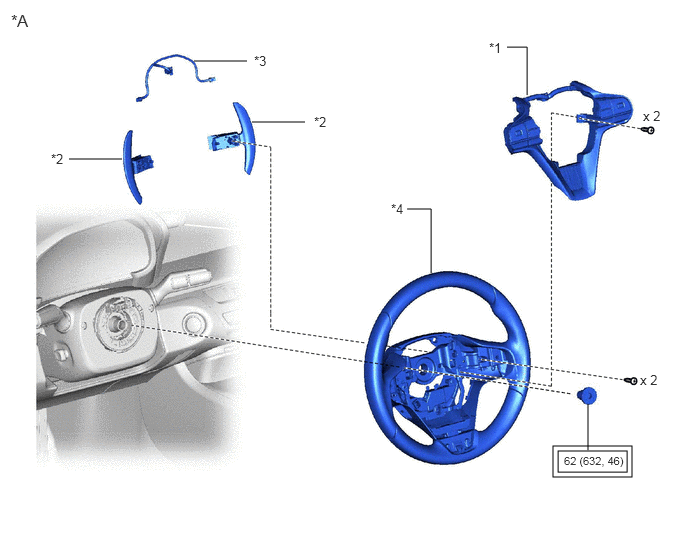

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 2)

*A	w/ Steering Heater	-	-
*1	STEERING PAD SWITCH ASSEMBLY	*2	TRANSMISSION SHIFT SWITCH ASSEMBLY
*3	NO. 2 SWITCH WIRE	*4	STEERING WHEEL ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
