Components [07/2020 - ]

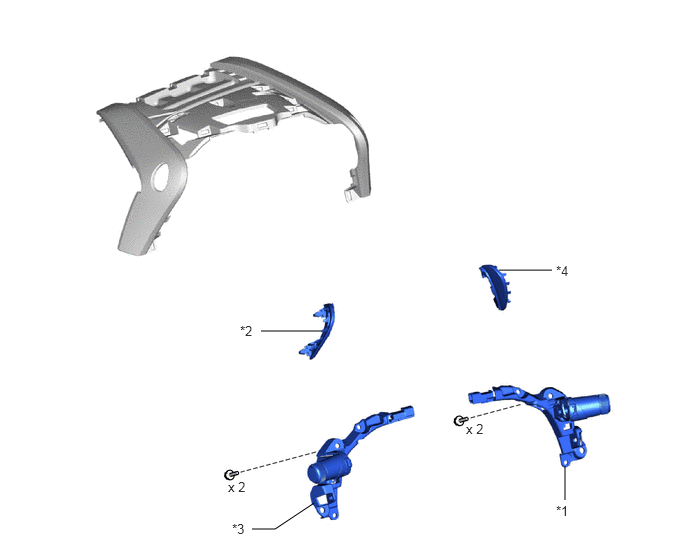

Fig 1: Combination Switch Replacement Components
GTY832272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION SWITCH ASSEMBLY *2 INSTRUMENT PANEL HOLE COVER
*3 NO. 2 COMBINATION SWITCH ASSEMBLY *4 NO. 2 INSTRUMENT PANEL HOLE COVER
