Installation [07/2020 - ]: Procedure

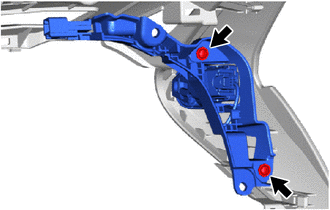

  1. INSTALL NO. 2 COMBINATION SWITCH ASSEMBLY
    1. Install the No. 2 combination switch assembly with the 2 screws.
      GTY834727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMBINATION SWITCH ASSEMBLY
    GTY809171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the combination switch assembly with the 2 screws.
  3. INSTALL NO. 2 INSTRUMENT PANEL HOLE COVER
    1. Attach the 2 claws and install the No. 2 instrument panel hole cover.
      GTY809215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

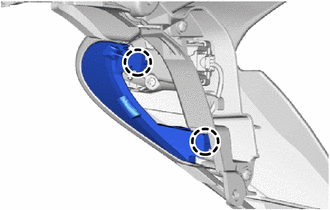

  4. INSTALL INSTRUMENT PANEL HOLE COVER
    1. Attach the 2 claws and install the instrument panel hole cover.
      GTY809217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL METER HOOD SUB-ASSEMBLY

    Refer to INSTALLATION [07/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
