Operation Method [07/2020 - ]: Procedure
- SECURE VEHICLE
- Apply the parking brake.
- Turn the engine switch off and use wheel chocks to secure the vehicle.WARNING:
During power failure, make sure use wheel chocks to secure the vehicle as the parking brake cannot be used.
- PARKING LOCK FORCED RELEASE
- Remove the radio remote tuning switch assembly.
Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]

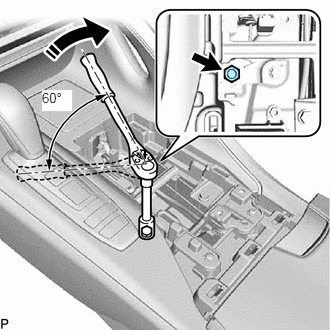

- While the brake pedal is depressed, use a tool to turn the hexagonal portion approximately 60° clockwise and release the parking lock.NOTE:
- If excessively large amount of torque is applied, parts may be damaged.
- If rotated in the opposite direction, parts may be damaged.
HINT:
- Torque required to release lock: Approx. 9.0 N.m (92 kgf/cm, 80 in.lbf)
- After it is released, the hexagonal portion will return to its original position but the parking lock will stay released.
Release Parking Lock
- Remove the radio remote tuning switch assembly.
- PARKING LOCK
- After finishing the procedure, press the parking switch with the engine switch turned on (IG) to activate the parking lock.
