Components [07/2020 - ]

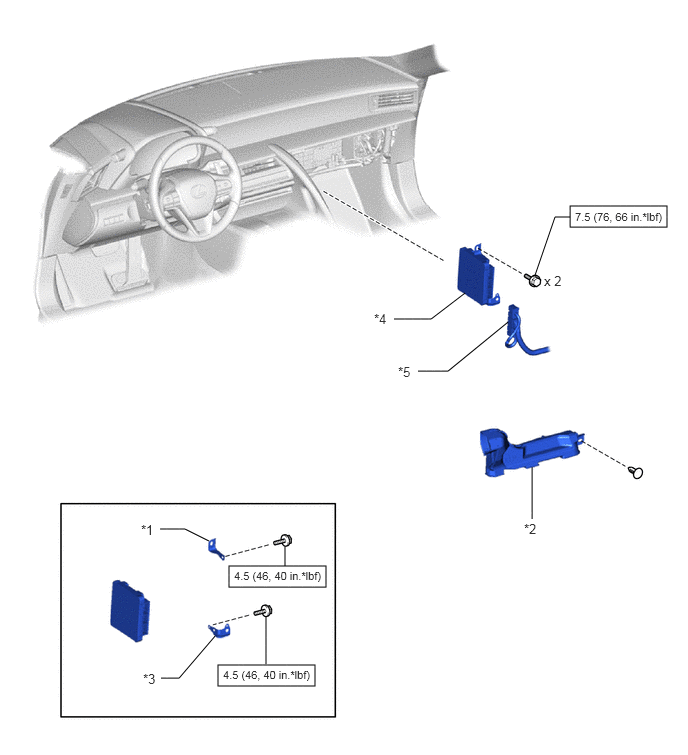

Fig 1: Shift Control ECU Replacement Components With Torque Specifications
GTY818179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 SHIFT CONTROL ECU BRACKET *2 NO. 2 AIR DUCT
*3 NO. 2 SHIFT CONTROL ECU BRACKET *4 SHIFT CONTROL ECU
*5 SHIFT CONTROL ECU CONNECTOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
