Components [07/2020 - ]

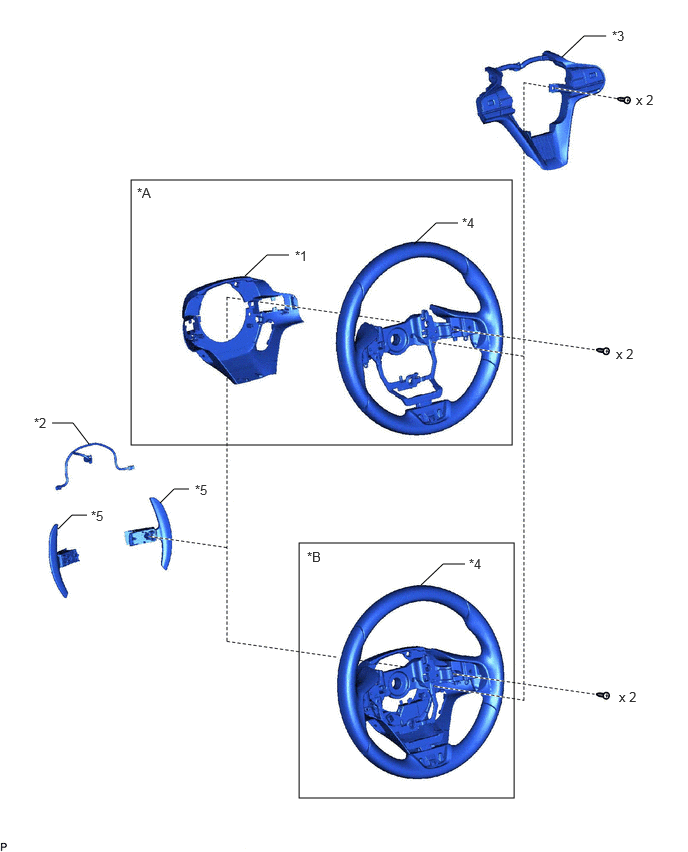

Fig 1: Shift Paddle Switch Replacement Components
GTY955165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Steering Heater *B w/ Steering Heater
*1 LOWER STEERING WHEEL BOSS COVER *2 NO. 1 SWITCH WIRE
*3 STEERING PAD SWITCH ASSEMBLY *4 STEERING WHEEL ASSEMBLY
*5 TRANSMISSION SHIFT SWITCH ASSEMBLY - -
