Operation Check [01/2017 - 05/2023]

CHECK CUSTOMIZE PARAMETERS
NOTE:
The operation check below is based on the non-customized initial condition of the vehicle.

Refer to CUSTOMIZE PARAMETERS [01/2017 - 05/2023]

CHECK THE ENTRY UNLOCK FUNCTION

NOTE:

When the door outside handle sub-assemblies are stuck due to being frozen and performing smart operations cannot be performed, open the door handles using the wireless operation. If the door handles still cannot be opened, pour hot water over them and try the operation again after they have thawed.

Check the entry unlock function (driver door, front passenger door).

Perform a wireless lock door operation to lock the door, press the depression on the door outside handle sub-assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door unlocks.

Inspect the entry unlock detection area. Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter sub-assembly blinks.

Fig 1: Entry Unlock Detection Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	0.7 to 1 m (2.30 to 3.28 ft.)

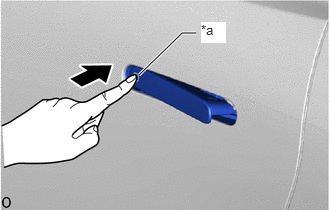

With the system in unlock standby mode, press the depression on the door outside handle sub-assembly (for driver door) and check that the door unlocks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Depression

HINT:

The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly).
Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the door outside handle assembly.
Inspect the front passenger door using the same procedure.

CHECK THE ENTRY LOCK FUNCTION

NOTE:

If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, in the pocket, in the console or on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.
There are cases where the door outside handle sub-assemblies cannot be completely retracted due to frozen water preventing the door handles from retracting. The door handles will return to the intended position after the ice has melted.
Smart operations may not work if a large load is applied to a door outside handle sub-assembly resulting in the door handle position being moved out of the normal open position. In this case, the door handles will return to the normal condition after using the wireless operation to lock or unlock the door.

Check the entry lock function (driver door, front passenger door).

With the door closed and unlocked, press the back end of the door outside handle sub-assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door locks.

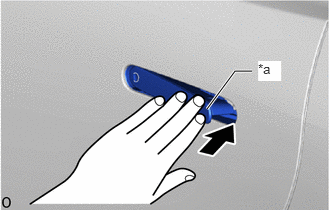

Fig 2: Checking The Entry Lock Function For Driver Door And Front Passenger Door

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Back End

HINT:

If the door outside handle assembly is retracted, press the depression on the door outside handle assembly and extend it, then check this function.
Inspect the front passenger door using the same procedure.

Inspect the entry lock operating range. Hold the electrical key transmitter sub-assembly approximately 0.1 (0.328 ft.) below the bottom edge of the door glass and approximately 0.3 m (0.984 ft.) from the vehicle as shown in the illustration, press the back end of the door outside handle sub-assembly and check that the door locks.

Fig 3: Entry Unlock Detection Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Approximately 0.3 m (0.984 ft.)

HINT:

As communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the door outside handle sub-assembly, the door may not lock if the back end of the door outside handle sub-assembly with the same hand that is carrying the electrical key transmitter sub-assembly, etc.
If the key lock-in prevention function buzzer sounds, radio waves from the indoor electrical key antenna may be leaking from the vehicle.
Inspect the front passenger door using the same procedure.

CHECK ENTRY LUGGAGE DOOR OPEN FUNCTION

Check the entry luggage door open function.

Fig 4: Luggage Electrical Key Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Luggage Electrical Key Switch
*a	0.7 to 1 m (2.30 to 3.28 ft.)

Perform a wireless lock operation to lock the doors, operate the luggage electrical key switch while carrying the electrical key transmitter sub-assembly and check that the luggage compartment door opens.

Inspect the entry luggage door open operating range. While standing at the rear of the vehicle, hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the illustration at the same height as the luggage electrical key switch and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle, press the luggage electrical key switch and check that the luggage compartment door opens.
HINT:

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (inside luggage compartment).

CHECK PUSH-BUTTON START FUNCTION
Refer to OPERATION CHECK [01/2017 - 05/2023]
CHECK KEY LOCK-IN PREVENTION FUNCTION (VEHICLE INTERIOR)
NOTE:
In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.
1. Check the key lock-in prevention function (vehicle interior).
  1. Turn the power switch off.
  2. Place the electrical key transmitter sub-assembly on a front or rear seat.
  3. Close all of the doors and make sure they are unlocked.
  4. Press the back end of the door outside handle sub-assembly and check that the doors do not lock and the key lock-in prevention function buzzer (external) sounds for approximately 5 seconds.

CHECK KEY LOCK-IN PREVENTION FUNCTION (IN LUGGAGE COMPARTMENT)

NOTE:

In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.
If the electrical key transmitter sub-assembly is in any of the following locations, the key lock-in prevention function may not operate:
- Near the spare tire or at the edge of the luggage compartment.
- In a metal bag or near a metal object.

Check the key lock-in prevention function (in luggage compartment).

Place the electrical key transmitter sub-assembly in the luggage compartment with all doors locked. Check that: 1) closing the luggage compartment door triggers the wireless buzzer (which lasts approximately 2 seconds), and 2) pressing the luggage electrical key switch opens the luggage compartment door.

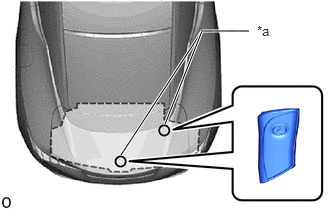

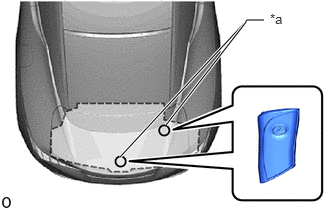

Inspect the key lock-in prevention detection area. Pay attention to the direction of the electrical key transmitter sub-assembly shown in the illustration. When the electrical key transmitter sub-assembly is in either of the 2 locations in the illustration, check that: 1) closing the luggage compartment door sounds the wireless buzzer, and 2) pressing the luggage electrical key switch opens the luggage compartment door.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inspection Point

HINT:

Perform the inspection for both inspection points.
When all the doors are locked and the luggage compartment door is closed with the same hand that is carrying the electrical key transmitter sub-assembly, the key lock-in prevention function (in luggage compartment) may be operated and the luggage compartment door is not locked. Check the location of the electrical key transmitter sub-assembly before checking this function.

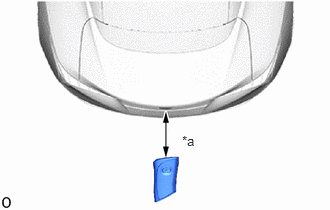

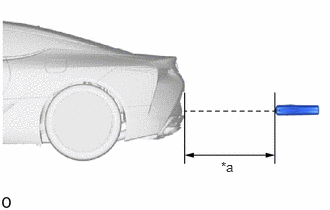

Inspect the key lock-in prevention detection area and the door control receiver for wave leaks. Hold the electrical key transmitter sub-assembly at the same height as the lower edge of the luggage compartment door aligning it with the center of the rear of the vehicle. Pay attention to the direction and position of the electrical key transmitter sub-assembly shown in the illustration. When the electrical key transmitter sub-assembly is over 0.1 m (0.328 ft.) from the rear bumper and the luggage compartment door is closed, check that the wireless buzzer does not sound.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	0.1 m or more (0.328 ft. or more)

HINT:

If the wireless buzzer sounds, the No. 1 indoor electrical key antenna assembly (inside luggage compartment) may have a wave leak.
When the electrical key transmitter sub-assembly is within 0.1 m (0.328 ft.) from the rear bumper, key lock-in prevention function (in luggage compartment) may operates.

CHECK ANSWER-BACK FUNCTION

Check the answer-back function (hazard warning light flashing and buzzer sounding).

Entry Operation	Hazard Warning Light	Wireless Buzzer
Entry Lock	Flashes once	Sounds once
Entry Unlock	Flashes twice	Sounds twice

CHECK TRANSMITTER BATTERY SAVING MODE FUNCTION
Refer to OPERATION CHECK [01/2017 - 05/2023]
CHECK ENTRY CANCEL FUNCTION
Refer to OPERATION CHECK [01/2017 - 05/2023]

KEY DIAGNOSTIC MODE (Using Techstream)

HINT:

With key diagnostic mode, it is possible to check if the electrical key transmitter sub-assembly is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the wireless buzzer.
If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.

Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode).

Body Electrical > Smart Access > Utility

Tester Display
Communication Check(Key Diag Mode)

Inspect the appropriate item according to the following table.

Tester Display	Inspection Item
[CH1/CH2] Overhead + Driver Side*1	Door outside handle sub-assembly (electrical key antenna) (for driver door)
[CH1] Overhead + Driver Side*1
[CH2] Overhead + Driver Side*1
[CH1/CH2] Overhead + Passenger Side*2	Door outside handle sub-assembly (electrical key antenna) (for front passenger door)
[CH1] Overhead + Passenger Side*2
[CH2] Overhead + Passenger Side*2
[CH1/CH2] Overhead + Front Room*3	No. 1 indoor electrical key antenna assembly (front floor)
[CH1] Overhead + Front Room*3
[CH2] Overhead + Front Room*3
[CH1/CH2] Overhead + Rear Room*4	No. 1 indoor electrical key antenna assembly (rear floor)
[CH1] Overhead + Rear Room*4
[CH2] Overhead + Rear Room*4
[CH1/CH2] Overhead + Luggage*5	Electrical key antenna (outside luggage compartment)
[CH1] Overhead + Luggage*5
[CH2] Overhead + Luggage*5
[CH1/CH2] Luggage + Luggage (inside)*6	No. 1 indoor electrical key antenna assembly (inside luggage compartment)
[CH1] Luggage + Luggage (inside)*6
[CH2] Luggage + Luggage (inside)*6
[CH1/CH2] Luggage + Luggage*7	Electrical key antenna (outside luggage compartment)
[CH1] Luggage + Luggage*7
[CH2] Luggage + Luggage*7
[CH1/CH2] Immobiliser Amp*8	Amplifier (power switch)
[CH1] Immobiliser Amp*8
[CH2] Immobiliser Amp*8

[CH1]: Channel 1 is set.
[CH2]: Channel 2 is set.
[CH1/CH2]: Channel 1 and 2 switch automatically at a specific interval*.
*: If the electrical key transmitter sub-assembly is detected with either channel 1 or 2, the buzzer sounds.

Bring the electrical key transmitter sub-assembly near the selected electrical key antenna and check that the wireless buzzer sounds.

HINT:

The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.

*1: Door outside handle sub-assembly (for driver door)

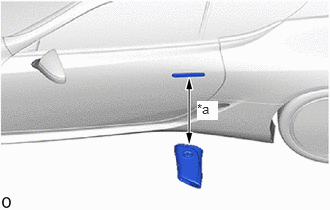

Fig 5: Entry Unlock Detection Area

*a	0.7 to 1 m (2.30 to 3.28 ft.)

HINT:

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle sub-assembly in the position shown in the illustration.
*2: Perform the same inspection for the front passenger door.

*3: No. 1 indoor electrical key antenna assembly (front floor)

*a	Inspection Point

HINT:

Place the electrical key transmitter sub-assembly on the front seat cushion of the driver seat or front passenger seat.

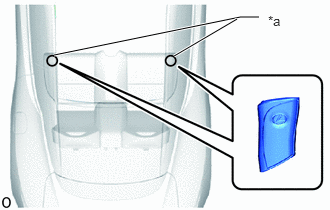

*4: No. 1 indoor electrical key antenna assembly (rear floor)

*a	Inspection Point

HINT:

Place the electrical key transmitter sub-assembly on the rear seat cushion.

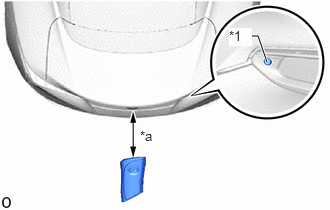

*5, *7: Electrical key antenna (outside luggage compartment)

*a	0.7 to 1 m (2.30 to 3.28 ft.)

HINT:

Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle, as shown in the illustration.

*6: No. 1 indoor electrical key antenna assembly (inside luggage compartment)

*a	Inspection Point

HINT:

Place the electrical key transmitter sub-assembly in the luggage compartment.

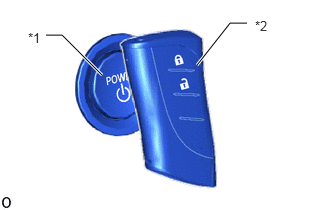

*8: Amplifier (power switch)

*1	Power Switch
*2	Electrical Key Transmitter Sub-assembly

HINT:

While facing the logo side of the electrical key transmitter sub-assembly toward the power switch, hold the transmitter near the power switch.
