Section 22 (Front Radar Sensor System - Diagnostics - Introduction)
>>
Front Radar Sensor System
>>
System Diagram [10/2023 - ]
>>
System Diagram [10/2023 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [10/2023 - ]
WARNING:
This page is about a different car, the 2024 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

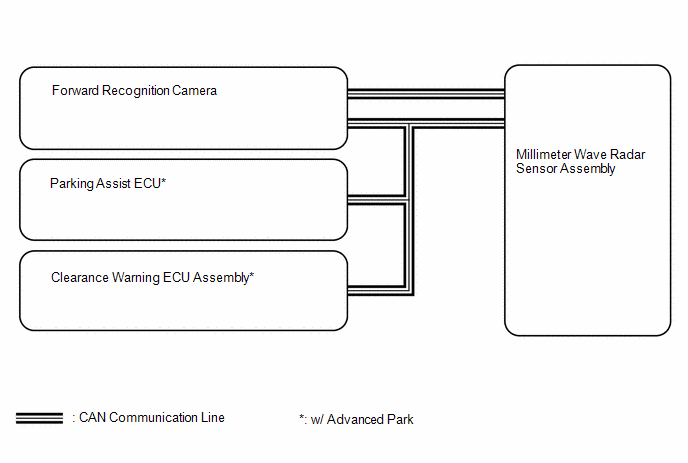

Fig 1: Front Radar Sensor System For Mono Camera Type) [12/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
