System Diagram [12/2017 - 10/2023]

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

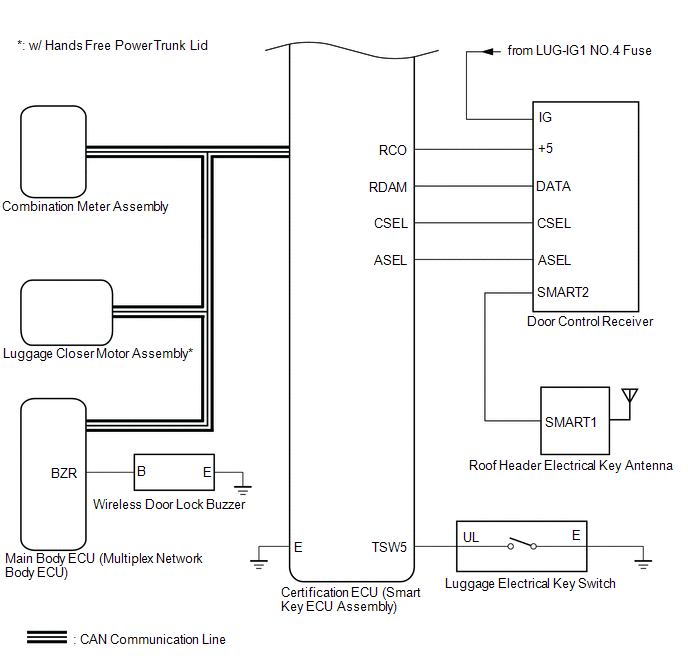

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

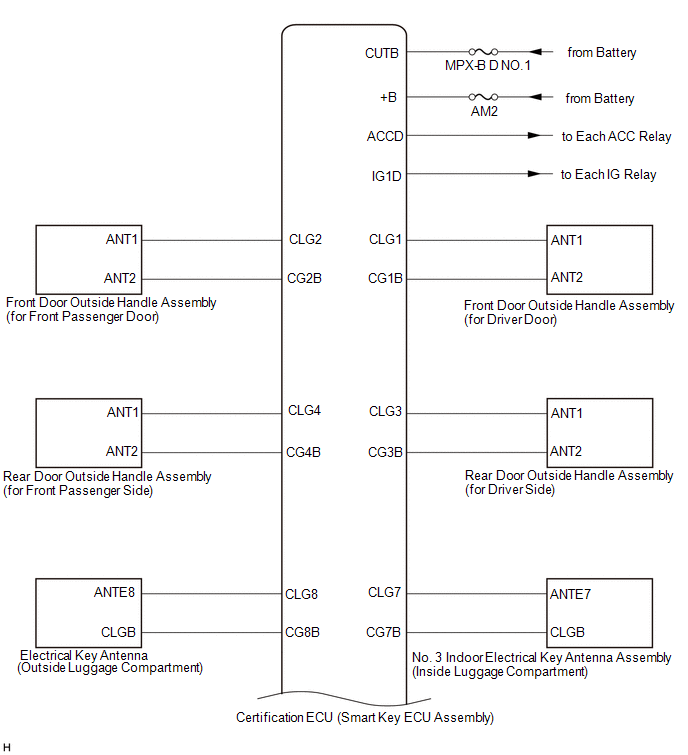

Fig 2: Smart Access System With Push-Button Start (For Entry Function) Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
Refer to SYSTEM DIAGRAM [12/2017 - 10/2022] , or refer to SYSTEM DIAGRAM [10/2022 - 10/2023]
POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [12/2017 - 10/2023]
WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [12/2017 - 10/2023]
POWER TRUNK LID SYSTEM (w/ Hands Free Power Trunk Lid)
Refer to SYSTEM DIAGRAM [12/2017 - 10/2023]
